Peerless PHP35

PHP35 Diesel Air Compressor: Belt Drive, Yanmar L70, 720LPM - for High Pressure

Portable performance: 720L/pm of free air delivery, working at 116PSI (8 Bar) or 145PSI (10 Bar). High pressure, means truck tyres inflate quickly with no down time!
  • Availability:
    In Stock
  • SKU:
    00094 (PHP35D)
Retail $15,525.00
Cost $15,525.00 Retail Retail
Discount 0
Tax included.

Power at a Glance

Free air delivery

Litres per minute of air

720LPM @ 100PSI

Diesel motor

Key start as standard

L70 Yanmar Diesel

High Pressure

Pounds per square inch

Max 175 PSI

Warranty

Pump / Motor / Tank

1 Year / 3 Years / 10 Years

See all the specs

Built for the hard worker in the trade!

icon

Conrader Idler Valve.

USA made air operated idler valve. Save fuel and money.

icon

Manufactured in Australia.

Built and assembled in Bendigo, Victoria for over 60 years.

icon

Power on the go.

Take your compressor wherever you go with its easy and flexible design.

Product description

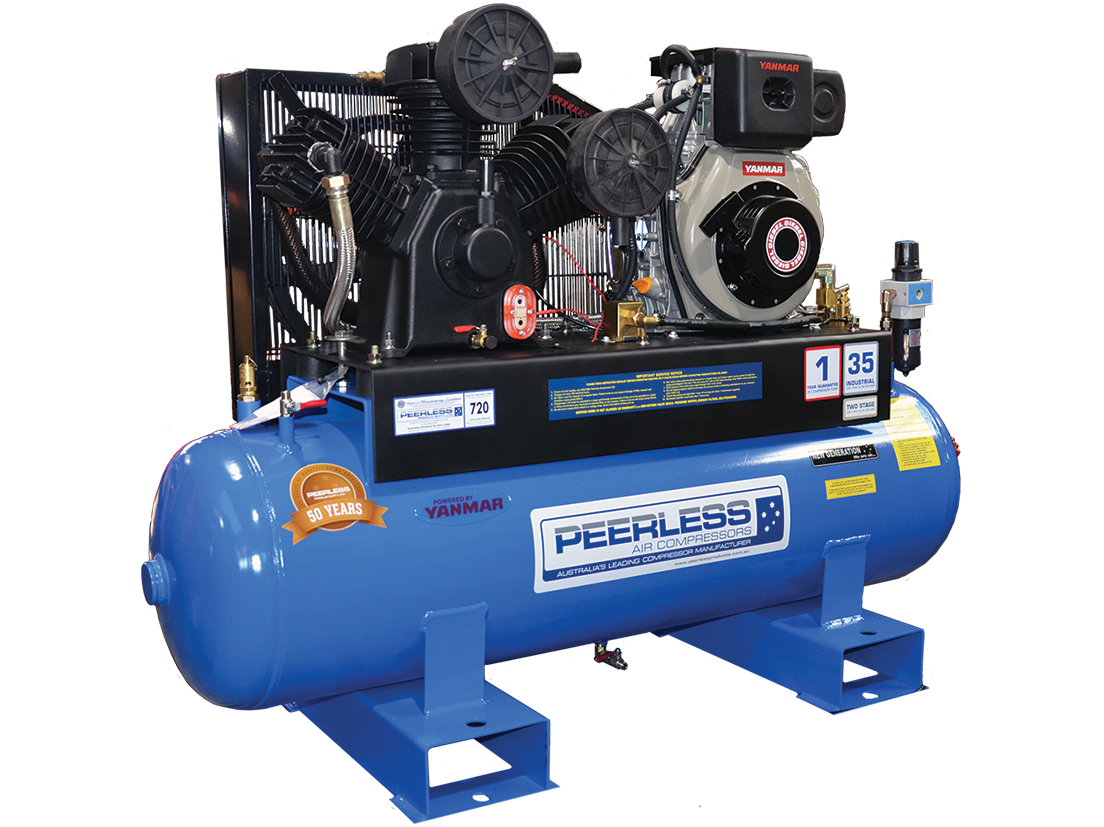

Peerless Products have a very unique design when it comes to the Diesel range of air compressors. We have a floating top plate that isn’t hard welded to the tank. We do this to assist in eliminating the vibration from the motor and the pump, limiting the vibration transfer to the air receiver reduces metal stress and less load be transferred to where it is also mounted. This is also an advantage to the user or operator as if you would like to dismount and have the tank situated as where on a vehicle build you can separate easier at no additional cost*. You then have the option of mounting the top plate (motor and Pump) to a lower centre of gravity and then the pump can be placed under the body tray. We use Yanmar diesel engines which are well used throughout Australia, these diesel engines also run a bit quieter than other brands in the market when comparing side by side. Key start engines are the only option we do in the diesel range. The conrador valve fits in perfectly with the Yanmar engine able to idle up and down when air demand is required, the air operated piston valve will automatically throttle up and down with the excess air not being required being vented out of the control valve.

Every Peerless Diesel build comes with the best suited water trap filter regulator fitted, being a unit that runs 0-145PSI or 0-175PSI, we have it covered so you can connect and start work. With that being said, we run and test every air compressor so that we know it will be in top working order when you receive delivery.

If your looking at doing a service vehicle and our standard models are not within your requirements, we are more than happy to custom build. Doing a custom build doesn’t mean that it’s going to be more expensive.

We can design and advise some really great ideas that we have used in previous designs to increase work productivity or even reduce the foot print of the overall air compressor. This means more space for tools or other equipment along with using a lift pump directly to the diesel engine. This will eliminate manually refuelling the air compressor which in turns reduces your weight of carrying extra fuel along with a hazard reduction of handling fuel.

Add a MDG15 retro box is always an added value, emergency stop, isolation switch, key start ignition and light indicator that complies for every mine site. If you’re not required to have a MDG15 box, we can extend your wiring lumen so you can fit inside your tool box, even split it so you can start your air compressor on either side of the vehicle.

Standard fitted features;

  • Yanmar key start engine
  • Conrador idle control system – USA made
  • Floating top plate – Peerless design
  • AS1210 approved pressure vessel – MDR report certificate available on request
  • Approved safety valve – safety certificate
  • 10 year tank warranty
  • Stainless steel gauges (not plastic)
  • Solid belt guard  (not wire)
  • Flexible braided outlet hose from pump
  • 2 air outlets - 1 x main tank outlet, 1 x water trap regulator outlet

Optional extras to consider when ordering:

  • Fuel pump – lift pump
  • MDG15 Mine compliant retro box
  • Wiring lumen extension (single or twin)
  • Specially build to meet your requirements

Electric start engine does not come with battery, leads or provisions for battery.

Performance of all our belt driven air compressors are to AS4637.

For over 60 years Peerless Products has been delivering and exceeding the needs of industry. Ask us about your requirements.

Technical Specifications
Code Model Pump Displacement (CFM) Free Air Delivery (LPM) Max PSI Engine Warranty
Pump
Warranty
Engine
Tank Capacity (L) Pump up
time to 100PSI
Dimensions (mm)
Weight (kg)
00094 PHP35D 35 CFM 720 LPM 175 Yanmar
L70
1 Year 3 Years 150L 1.35 - 1.40 Min 1470Lx560Wx1060H
230kg
00096 Twin Tank 35 CFM 720 LPM 175 Yanmar
L70
1 Year 3 Years 65L Min 1200Lx550Wx1000H
kg

Technical Data

Cooling
method
Pump type Cylinders Pump head
tension
Pump Oil capacity Pump RPM Outlet thread Engine Fuel capacity Engine oil
capacity
Air cooled W90II
2 Stage
3 30 FT LB
40.67NM
1.5L 790 1/2"BSP 2.7L 1.05L
10W/40
