Warranty.
Warranty - 1 year pump and motor warranty - Industrial warranty not domestic
Trade Series TS40W

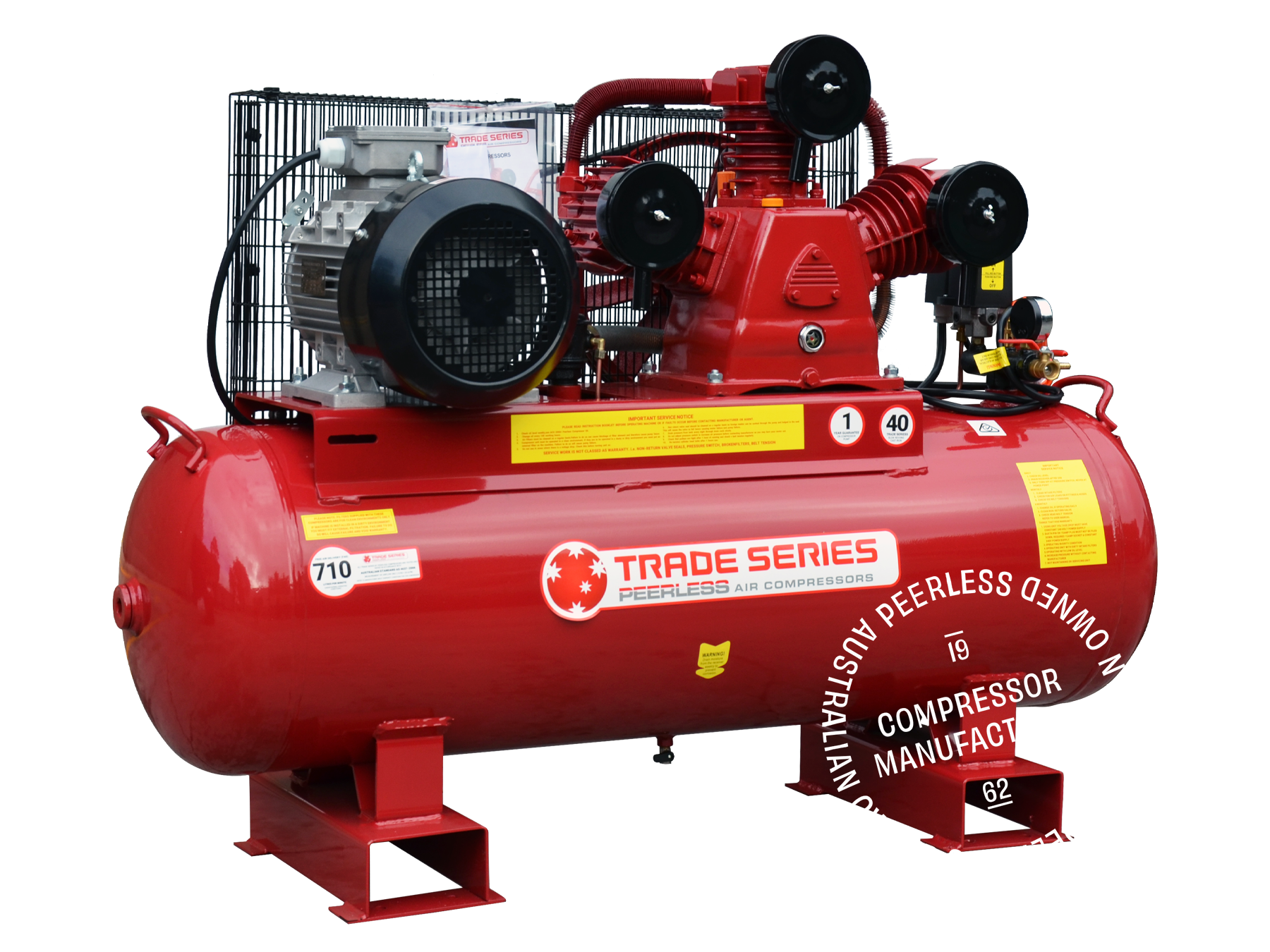

TS40W Three Phase Air Compressor: Belt Drive, 7.5HP, 710LPM
Impressive performance 710L/min free air. outlet: 1 x 1/2" 2 x 1/4". Cast iron pump, 1-year warranty.
Retail
Cost
Retail
Retail
Discount 0
Tax included.
Power at a glance.
|
Free air delivery Litres of air per minute |
710LPM @ 100PSI |
|
Pressure Pounds per square inch |
Max 145 PSI |
|
Motor |
7.5HP 3 Phase |
Trade Series
Product description
Technical Specifications
Spare parts
The "Trade Series" TS40W is a mid tier 7.5HP three phase air compressor. Delivering 710 litres of air per minute at 100PSI, fitted on a 160L pressure vessel. Steel cased air intake housing, 1/2" outlet, 2 x 1/4" outlets, and a full copper wound electric motor.
We recommend this compressor to workshops with around 4 - 5 operators and is ideal for mechanics and tyre fitters. If you require clean and dry air we have a complete range of refrigeration air dryers and inline filtration to keep your equipment in the best working order.
Need more air? try upgrading to our rotary screw compressor range. The air performance along with energy efficiency with variable speed technology can save your business time and money. It's all about the increased productivity, no down time and energy cost reductions. If you're unsure about what's best to suit your business, we're here to help. A Peerless specialist will tell you if it would be beneficial or not to look at the screw compressor option.
Available exclusively through our Peerless Platinum dealer network.
| Code | Model | Pump Displacement (CFM) | Free Air Delivery (LPM) | Max PSI | Motor HP | Warranty Pump |
Warranty Motor |
Tank Capacity (L) | Pump up time to 100PSI |
Dimensions (mm) Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| TS40W | TS40W | 40 CFM | 710 LPM | 145 | 3 | 1 Years | 1 Year | 160L | - | -Lx-Wx-H -kg |
Technical Data
| Cooling method |
Pump type | Cylinders | Pump head tension |
Oil capacity | Pump RPM | Outlet thread | Electricity | Amps draw |
|---|---|---|---|---|---|---|---|---|
| Air cooled | LB75 | 3 | FT LB 32NM |
1.95L | 950 | 1 x 1/2" 2 x 1/4"BSP | 415V / 11A | 11 |
Trade Series air compressors
Peerless "Trade Series" of air compressors are a mid tier. Unlike the Peerless blue flagship range, the pistons are a smaller diameter with slightly higher pump revving. This delivers a lesser air delivery based at the delivery, but suited for some areas of the market as a price point. Warranties on this particular range range from 1 year to 3 years.
Available exclusively through our Peerless Platinum dealer network.
