Power on the go.
Take your compressor wherever you go with its easy and flexible design.

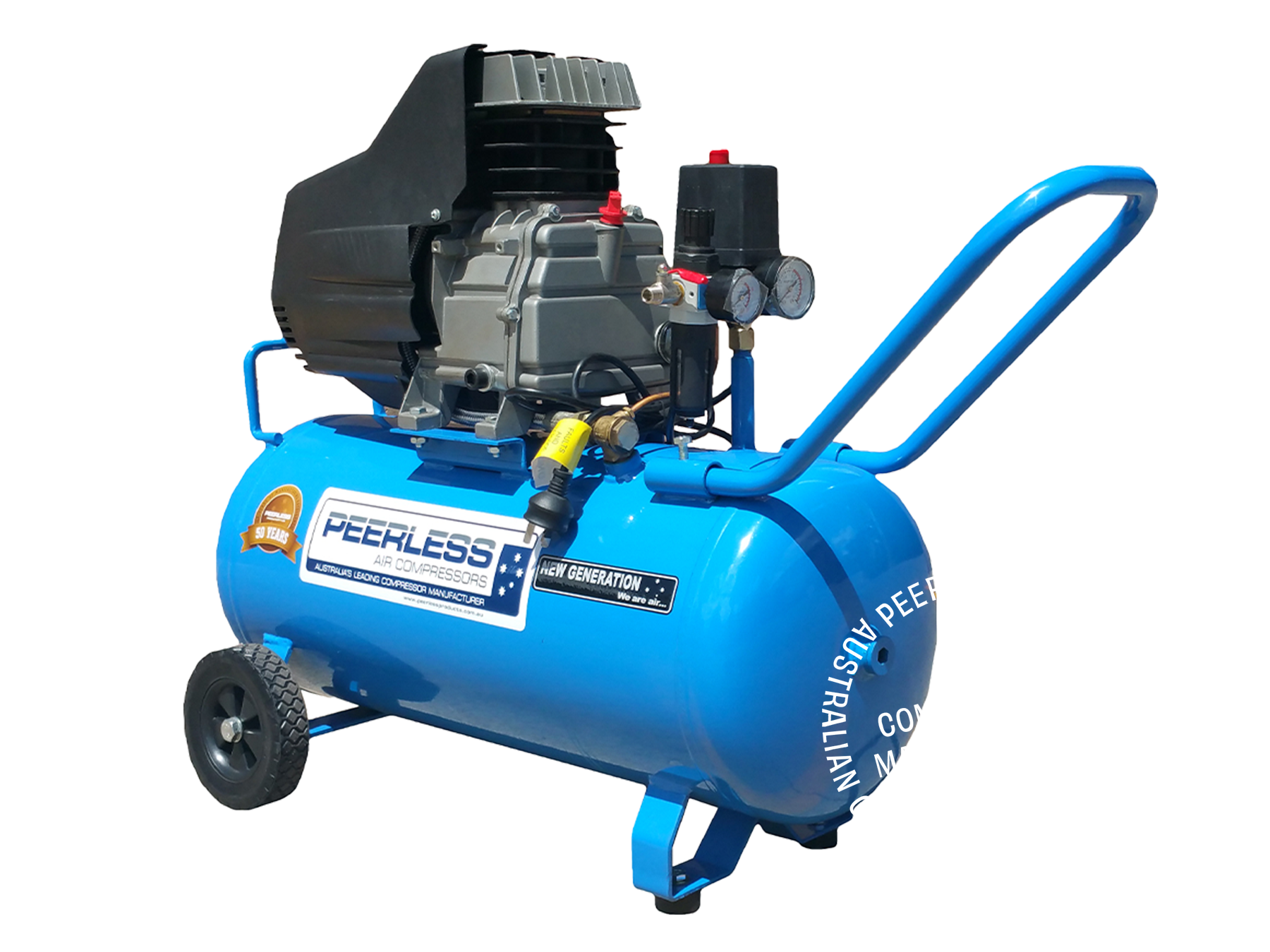

Peerless PD12
PD12 Single Phase Air Compressor: Direct Drive, 10Amp, 2.5HP, 175LPM
Compact powerhouse: 175L/min free air. outlet: water trap filter regulator. Peerless direct drive pump, 1-year warranty. Impressive performance in a compact design.
Retail
Cost
Retail
Retail
Discount 0
Tax included.
Power at a Glance
|
Free air delivery Litres per minute of air |
175LPM @ 100PSI |
|
Motor |
Electric 2.5HP |
|
Power supply |
10 Amp Plug |
|
Pressure Pounds per square inch |
Max 145 PSI |
One of the largest direct drives on the market.
Warranty.
Warranty - 1 year pump and motor warranty - Industrial warranty not domestic
Cast Iron Barrel.
Alloy pump featuring a cast iron barrel for minimal wear.
Product description
Technical Specifications
Spare parts
The PD12 is a great little unit delivering 175 litres of free air per minute, capable of running your framing and coil guns, it's one of the largest direct drives on the market.
Fitted with a water trap filter regulator along with auto drain function (not manual drain like most) its ready to be set at 90PSI to run your air tools
This unit has also been designed that if you have the wheels removed you can mount directly to a base without having to chock up either ends.
Able to run;
- Low pressure spray guns
- Car tyre inflation
- Stapling / fitting gun
- Framing nail gun
- Grease gun
- Chalking gun
- Riveter gun
Did you know?
In standard environment conditions when your air compressor reaches 14 PSI you have the reached the volume of air in the receiver!. So on this particular model (PO13) at 14 PSI you have 30L of compressed air in the tank. At 28 PSI you now have 60L of compressed air in the tank. So if the cut out pressure is 112 PSI, you now have 240L of stored compressed air! Who said small tanks don't hold enough air?
As mentioned this can be affected by the temperature and other factors.
Smaller tanks also equates to quicker air recovery times of lost pressure along with lower operating temperature of pump.
Important
Please note: air compressors i.e piston type, are not designed to run continuously they must cut in and out. Direct drive models should only have up to a 40-50% duty cycle. Belt Drive hobby models are up to 60-70% and full industrial belt drive models are up to 75-85%. If the compressor runs over these duty cycles it could cause failure. Important - first check voltage on each building site as low voltage will cause the motor to fail on all compressors. It must have be better than 230 volt at peak times. Extension leads will cause voltage drop, it's better to use extra air hose.
Performance of all our belt driven air compressors are to AS4637.
For over 60 years Peerless Products has been delivering and exceeding the needs of industry. Ask us about your requirements.
| Code | Model | Free Air Delivery (LPM) | Max PSI | Motor HP | Warranty Pump |
Warranty Motor |
Tank Capacity (L) | Pump up time to 100PSI |
Dimensions (mm) Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 00085 | PD12 | 175 LPM | 145 | 2.5 | 1 Year | 1 Year | 40L | 1.55 - 2.00 Min | 920Lx390Wx690H 39kg |
Technical Data
| Cooling method |
Pump type | Cylinders | Pump head tension |
Oil capacity | Pump RPM | Outlet thread | Electricity | Amps draw |
|---|---|---|---|---|---|---|---|---|
| Air cooled | Alloy Direct Drive |
1 | 7.8 FT LB 11NM |
650mL | 2850 | 1/4" BSP | 240V / 10A | 8 |
Single phase air compressors
All Peerless single phase compressors are designed for efficiency and are suitable for full industrial use. Each compressor also features a smart start filter, reducing startup amps by 30-40%, making them ideal choices for use in low voltage areas.
