Peerless PHP40 Industrial

PHP40 Three Phase Air Compressor: Belt Drive, 7.5HP, 720LPM - for High Pressure

Maximum air performance: 720L/min, slow revving cast iron pump. Truckie's mate with the high pressure pump.
  • Availability:
    In Stock
  • SKU:
    00071 (PHP40)
Retail $7,790.00
Cost $7,790.00 Retail Retail
Discount 0
Tax included.

Power at a Glance

Free air delivery

Litres per minute of air

720LPM @ 100PSI


7.5HP 3 Phase

High Pressure

Pounds per square inch

Max 175 PSI

See all the specs

Built for trade, Bendigo Victoria built.



Warranty - 1 year pump and motor warranty - Industrial warranty not domestic


Truckies Mate.

High pressure operation for truck tyre inflation. 2 Stage compressor pump.


Peace of mind.

Full range of service kits and spare parts available. Guaranteed back up and support.

Product description

This 7.5HP three phase, three cylinder, two stage compressor is again similar to the PHP30. Upgraded to a bigger motor and pump. Running off this copper wound motor is an impressive W95II Peerless oil injected pump. That's two 95mm pistons driving air into a 90mm high pressure cylinder. Pushing 720 litres of air per minute at the end of your air line at an incredible 100PSI. This is while the pump is only working at 746RPM! A very low speed making this one of our quietest three phase compressors compared to others.

We recommend this compressor to workshops with around 3 - 4 operators and is ideal for mechanics and tyre fitters. If you require clean and dry air we have a complete range of refrigeration air dryers and inline filtration to keep your equipment in the best working order. If you require more air we recommend upgrading to our PHP52 which features the same pump only a bigger 10HP motor. This compressor is perfect for workshops with medium levels of demand, offering reliable performance and easy maintenance. It's designed to raw maximum power at low RPMs for a quieter operation and advanced energy efficiency.

Helpful tip:

When mounting, be sure to get "high density" rubber matting and then fix to a secure footing as per your states regulations. Remember, when installing allow enough space for the air compressor to breath, air flow is forced over the pump to keep it cool. If mounted hard up against a wall or boxed, it will have trouble getting the correct air circulation.

All pressure vessels can be supplied with a "Manufacturing Data Report" along with "Registered Design" for Work Safe registration.
Peerless Products pressure vessels are all made to AS1210.

Performance of all our belt driven air compressors are to AS4637.

For over 60 years Peerless Products has been delivering and exceeding the needs of industry. Ask us about your requirements.

Technical Specifications
Code Model Pump Displacement (CFM) Free Air Delivery (LPM) Max PSI Motor HP Warranty
Tank Capacity (L) Pump up
time to 100PSI
Dimensions (mm)
Weight (kg)
00071 PHP40 40 CFM 720 LPM 175 7.5 1 Year 1 Year 150L 1.35 - 1.40 Min 1500Lx550Wx1100H

Technical Data

Pump type Cylinders Pump head
Oil capacity Pump RPM Outlet thread Electricity Amps draw
Air cooled W95II 2 Stage 3 35 FT LB
2.3L 1075 1/4" BSP & 1/2" BSP 415V 10.2

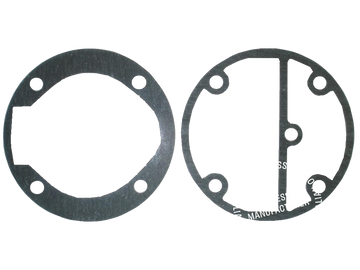

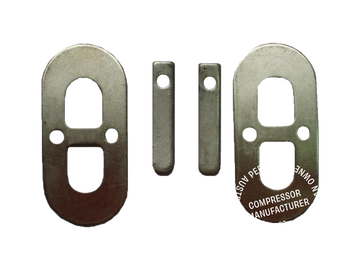

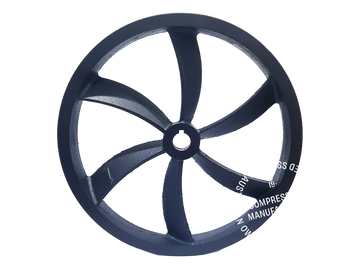

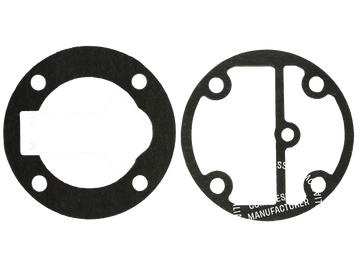

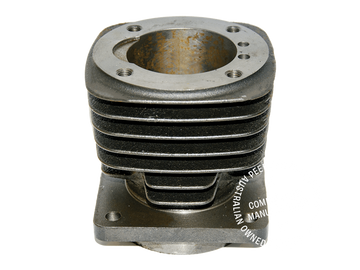

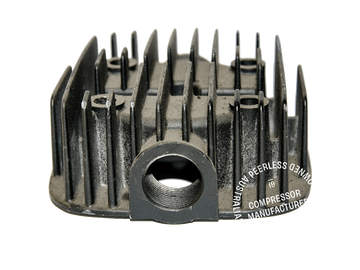

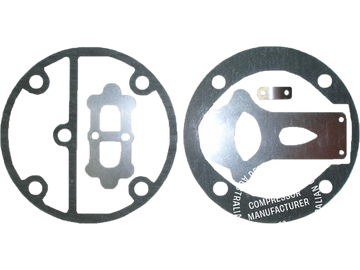

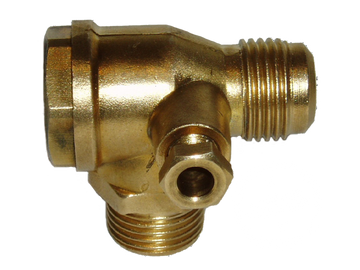

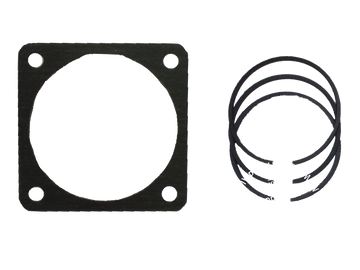

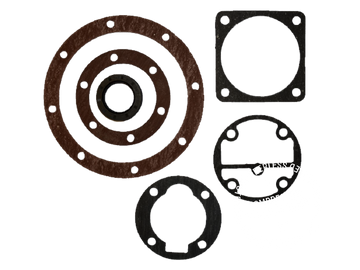

Spare parts
Retail $1,192.50
Cost $1,192.50 Retail Retail

Retail $2,000.00
Cost $2,000.00 Retail Retail

Top End of Pump W95II

Internal Components of Pump W95II

External / Body Components of Pump W95II

Retail $7,790.00
Cost $7,790.00 Retail Retail

Maximum air performance: 720L/min, slow revving cast iron pump. Truckie's mate with the high pressure pump.

Additional Components of PHP40 Three Phase
