Peerless PHP52

PHP52 Petrol Air Compressor: Belt Drive, Honda GX390, 1040LPM - for High Pressure

  • Availability:
    In Stock
  • SKU:
    00099 (PHP52P)
Retail $10,525.00
Cost $10,525.00 Retail Retail
Discount 0
Tax included.

Power at a Glance

Engine GX390

Key start as standard

GX390 Honda Petrol

High Pressure

Pounds per square inch

Max 175 PSI

See all the specs

Built tough for Australian conditions.

icon

Conrader Idler Valve.

USA made air operated idler valve. Save fuel and money.

icon

Manufactured in Australia.

Built and assembled in Bendigo, Victoria for over 60 years.

icon

Power on the go.

Take your compressor wherever you go with its easy and flexible design.

Product description

Peerless PHP52 Petrol Air Compressor – Built for High-Demand, Heavy-Duty Use

The PHP52 is the largest petrol-powered compressor in the Peerless range, delivering an exceptional 1040 litres per minute of free air. Featuring a large 150-litre air tank, it’s the perfect solution for high-demand applications where 3-phase power isn’t available.

Driven by the powerful Honda GX390 petrol engine, this unit is engineered to handle the harshest Australian conditions. The engine comes standard with electric start; however, please note that no battery, leads, or battery provisions are included.

Key Features:

  • Free Air Delivery: 1040 LPM

  • Tank Size: 150 Litres

  • Engine: Honda GX390 with electric start (battery and leads not included)

  • Built Tough: Designed for Australian conditions

  • Warranty: Backed by Honda’s 3-Year Nationwide Warranty

  • Custom Options: Standard and custom-built models available

All Peerless belt-driven air compressors are manufactured to meet AS4637 standards, ensuring superior performance and reliability.

Important Usage Guidelines:
Piston-type compressors are not designed for continuous operation.

  • Direct Drive Models: 40–50% duty cycle

  • Belt Drive Hobby Models: 60–70% duty cycle

  • Industrial Belt Drive Models: 75–85% duty cycle

Exceeding these duty cycles may lead to compressor failure. Always check site voltage before operation—low voltage (under 230V) can damage the motor. Avoid extension leads, as they cause voltage drop; use longer air hoses instead.


With over 60 years of experience serving Australian industry, Peerless Products is your trusted partner for reliable, high-performance air solutions.
Contact your Peerless representative today to ensure the PHP52 is the right fit for your job.

Technical Specifications
Code Model Pump Displacement (CFM) Free Air Delivery (LPM) Max PSI Engine Warranty
Pump
Warranty
Engine
Tank Capacity (L) Pump up
time to 100PSI
Dimensions (mm)
Weight (kg)

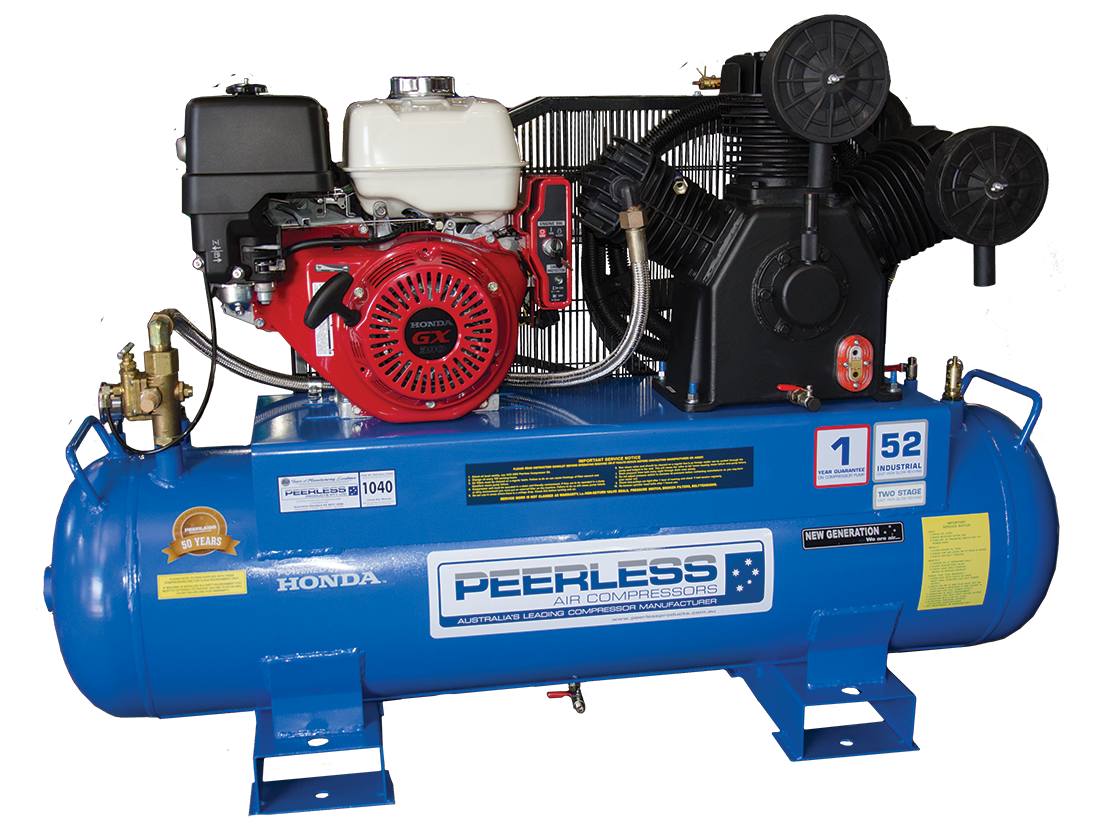

00099 PHP52P 52 CFM 1040 LPM 175 Honda GX390
Key Start
1 Year 3 Years 150L 0.55 - 1.00 Min 1490Lx485Wx1050H
218kg

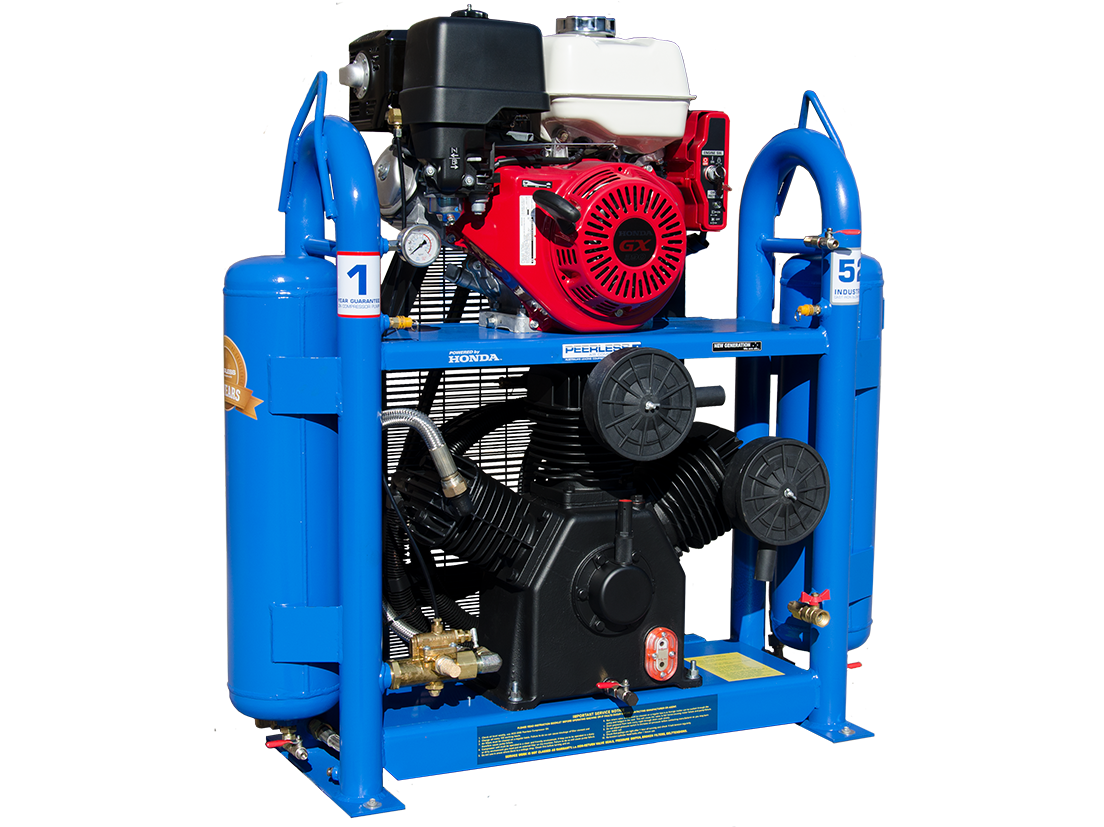

00099-UO Under Over 52 CFM 1040 LPM 175 Honda GX390
Key Start
1 Year 3 Years 32L - 1080Lx450Wx1030H
196kg

Technical Data

Cooling
method
Pump type Cylinders Pump head
tension
Pump Oil capacity Pump RPM Outlet thread Engine Fuel capacity Engine oil
capacity
Air cooled W95II
Triple head
3 35 FT LB
47.45NM
2.3L 1020 1/2"BSP 6.1L 1.1L
10W/30
Spare parts
Retail $2,000.00
Cost $2,000.00 Retail Retail

Top End of Pump W95II

Internal Components of Pump W95II

External / Body Components of Pump W95II


Retail $948.00
Cost $948.00 Retail Retail

Retail from $10,525.00
Cost from $10,525.00 Retail Retail
Fatboy
Under & Over Design

Additional Components of PHP52P Petrol


Petrol air compressors

Honda world class engines are used on all Peerless petrol models. All petrol models come standard with American made idler control valves and piston for improved fuel economy and emissions.

All Honda Petrol Engines supplied on a Peerless Air Compressor are designed and approved for the Australian market, which means it can be serviced/warrantied throughout Australia with any of the approved Honda service agents.
