Peerless PV25

PV25 Three Phase Air Compressor: Belt Drive, 5.5HP, 545LPM

Maximum air performance: 545L/min, slow revving cast iron pump with 90mm pistons.
  • Availability:
    In Stock
  • SKU:
    00555 (PV25)
Retail $4,475.00
Cost $4,475.00 Retail Retail
Discount 0
Tax included.

Power at a Glance

Free air delivery

Litres per minute of air

545LPM @ 100PSI


5.5HP 3 Phase


Pounds per square inch

Max 145 PSI

See all the specs

Quality and performance.


Seal of approval.

Australian GEMS approved three phase motor.


Peace of mind.

Full range of service kits and spare parts available. Guaranteed back up and support.

Product description

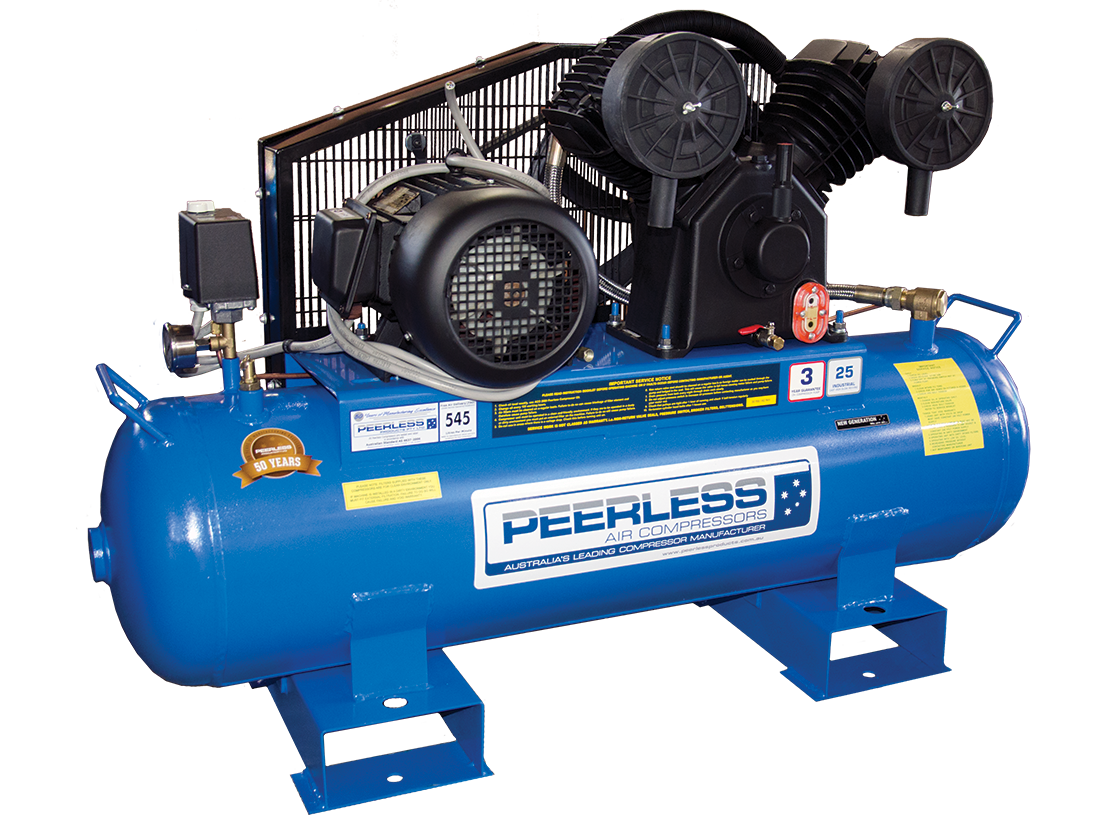

The PV25 is a V cast iron pump single stage air compressor. It gives a massive 545 litres of free air, with a maximum pump pressure of 145PSI.

The pistons are 90mm in diameter, making each stroke count for maximum air performance without having to over speed the pump RPM. When it comes to pump reliability, keeping the pump RPM under 1200RPM means you're not over working it.

This is one of the most popular three phase models on the market and is ideal for a 2-3 man workshop.

Able to run;
Low & high pressure spray guns
Car tyre inflation gun
Truck tyre inflation gun
Stapling / fitting gun
Framing nail / Grease gun
Chalking gun / Riveter gun
Screw driver
1/2” Ratchet gun
1/2” Impact gun
Air duster
4” Angle grinder
6” Orbital sander
Air drill
Engine cleaning gun
Sand blasting gun
Air hammer
Hi torque 1/2” Impact gun
Hi torque 3/4” Impact gun
1/4” Die grinder
Plasma Cutter
Air Gauging Tool

Helpful tip:

When mounting, be sure to get "high density" rubber matting (00011) and then fix to a secure footing as per your states regulations. Remember, when installing allow enough space for the air compressor to breath, air flow is forced over the pump to keep it cool. If mounted hard up against a wall or boxed, it will have trouble getting the correct air circulation.

All pressure vessels can be supplied with a "Manufacturing Data Report" along with "Registered Design" for Work Safe registration.
Peerless Products pressure vessels are all made to AS1210.

Performance of all our belt driven air compressors are to AS4637.

For over 60 years Peerless Products has been delivering and exceeding the needs of industry. Ask us about your requirements.

Technical Specifications
Code Model Pump Displacement (CFM) Free Air Delivery (LPM) Max PSI Motor HP Warranty
Tank Capacity (L) Pump up
time to 100PSI
Dimensions (mm)
Weight (kg)
00555 PV25 25 CFM 545 LPM 145 5.5 3 Years 1 Year 110L 1.00 - 1.05 Min 1090Lx450Wx930H

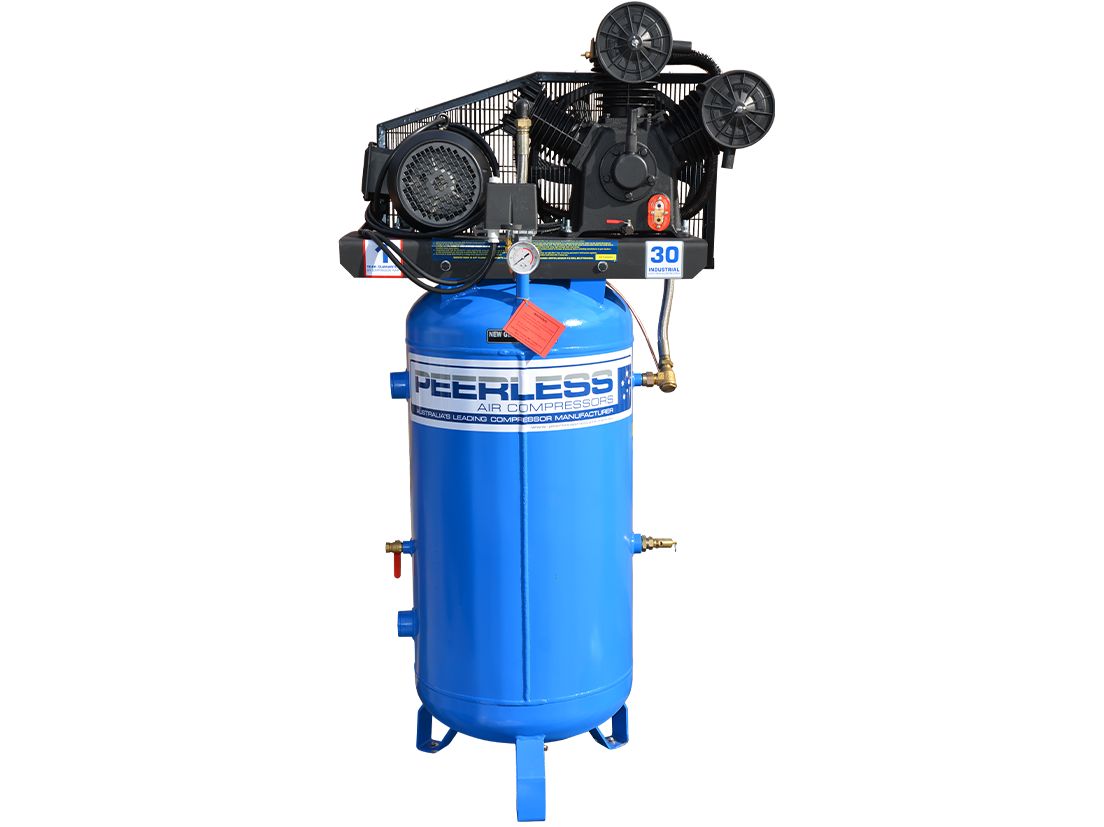

00110 PV25V 25 CFM 545 LPM 145 5.5 3 Years 1 Year 190L 2.20 - 2.25 Min 860Lx550Wx1640H

Technical Data

Pump type Cylinders Pump head
Oil capacity Pump RPM Outlet thread Electricity Amps draw
Air cooled V90 2 30 FT LB
1.5L 1050 1/4" BSP & 1/2" BSP 415V 6.6
Spare parts
Retail $1,625.00
Cost $1,625.00 Retail Retail

Top End of Pump V90

Internal Components of Pump V90

External / Body Components of Pump V90

Retail $1,225.00
Cost $1,225.00 Retail Retail

Retail from $4,475.00
Cost from $4,475.00 Retail Retail

Maximum air performance: 545L/min, slow revving cast iron pump with 90mm pistons.

Additional Components of PV25
