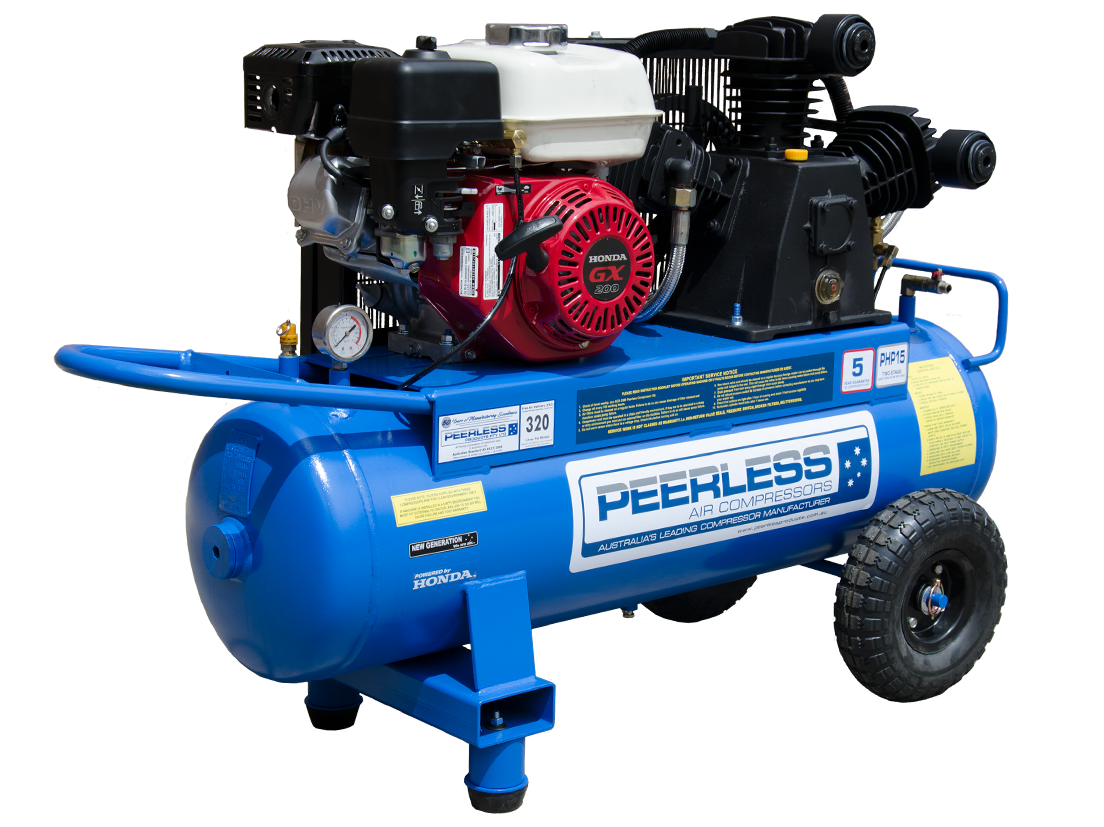

Peerless PHP15 Truckies Series

PHP15 Petrol Air Compressor: Belt Drive, Honda GX200, 320LPM - for High Pressure

See the specs See spare parts
  • Availability:
    In Stock
  • SKU:
    00101 (PHP15P)
$4,515.00
$4,515.00 Retail
Discount 0
Tax included.
Compare Ask a question Share

Power at a Glance

Free air delivery

Litres of air per minute

300LPM @ 100PSI

Engine GX200

GX200 Honda Petrol

High Pressure

Pounds per square inch

Max 175 PSI

Warranty

Pump / Motor / Tank

5 Years / 3 Years / 10 Years
See all the specs

Built tough for Australian conditions.

icon

Manufactured in Australia.

Built and assembled in Bendigo, Victoria for over 60 years.

icon

Conrader Idler Valve.

USA made air operated idler valve. Save fuel and money.

icon

Power on the go.

Take your compressor wherever you go with its easy and flexible design.

Product description

The PHP15 is a 6HP Honda engine high pressure compressor capable of running at 175PSI. These machines are fantastic for tyre inflation i.e.. truck tyres or applications where large volumes of air at high pressure is required. The advantages of a two stage compressor is that you do not lose volume of air at higher pressure. The air temperature is some 40% cooler than the standard type of air compressor therefore producing less condensation. Electric start optional extra. Please call Peerless for a quote.

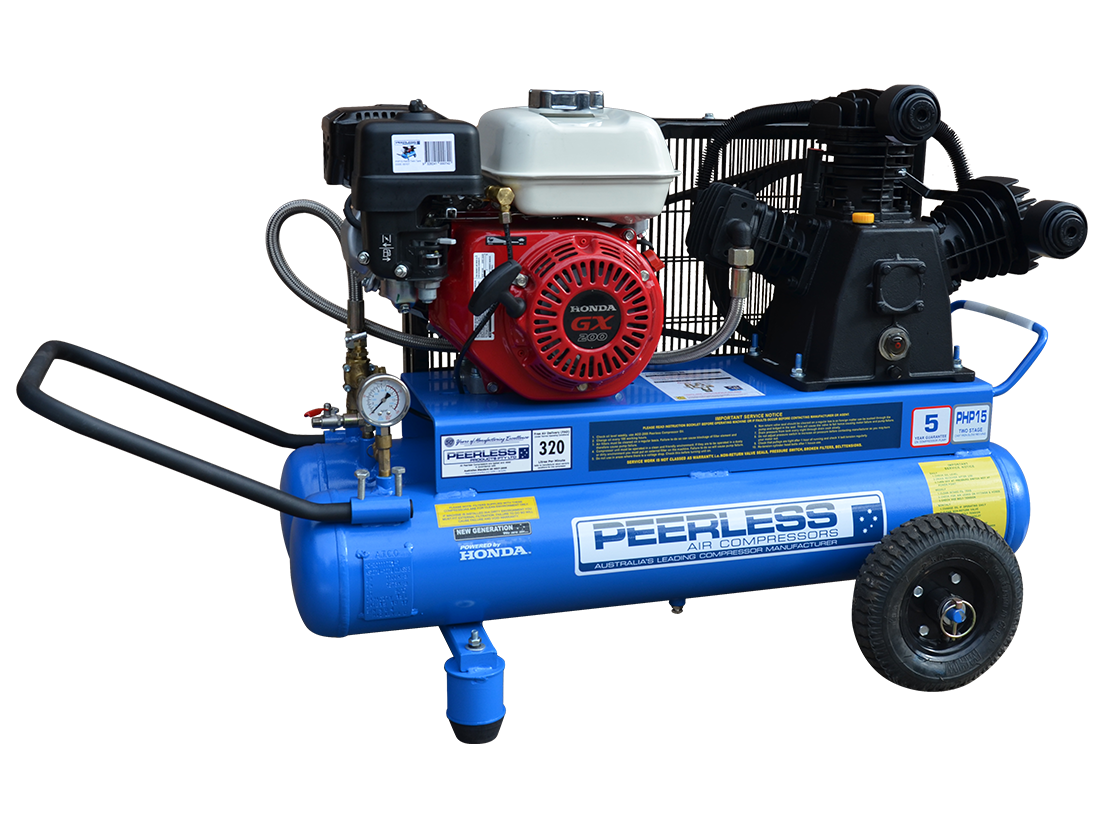

Twin Tank
The twin tank model is designed for better portability and stability in the back of vehicles. It's low center of gravity ensures stability in the back of utilities and on uneven ground The handle is also removeable making it a very compact unit when needed.

Ute Mate
The Peerless “Ute Mate” Honda powered compressor is the perfect answer to your utility vehicle needs. The model features huge power all contained in a modestly sized roll cage in order to keep your work horse in top shape, no matter the conditions!

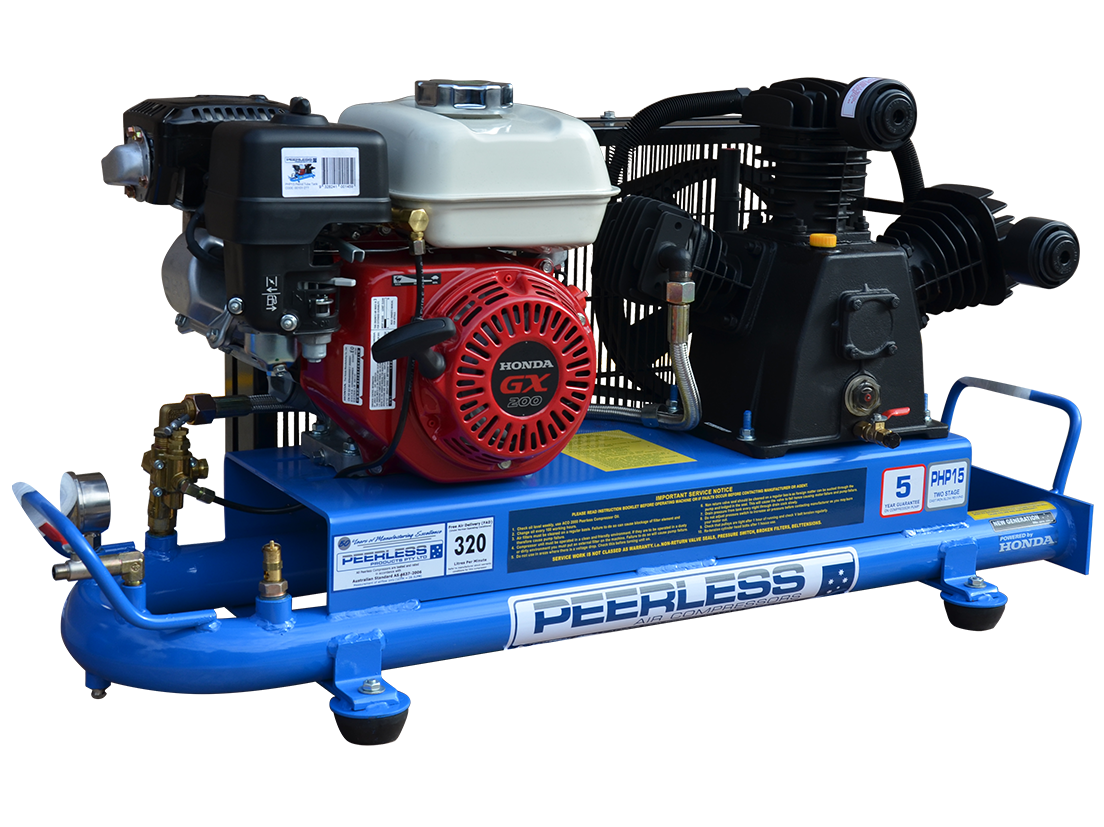

2" Tube Tank
With the performance of the 2" tube tank there is no down time on waiting for a receiver to fill, just instant pressure. If you lose pressure just take your finger off the trigger and then you’re back to full pressure again in less than 2 seconds. Being such a unique design, this frees up valuable space on or in the service truck/van which can help with any space or weight issues you may currently have.

Under / Over
The under & over model is extremely popular for saving space in the back of service vehicles or trailers. The greatest advantage of these and the tube models is their quick recovery time within 6 seconds you are back to full pressure and there is not much sense in pumping up a large air receiver before you pump up your tyres.

Electric start engine does not come with battery, leads or provisions for battery.
We can manufacture to your design plus there are other standard designs for each model.

Performance of all our belt driven air compressors are to AS4637.

For over 60 years Peerless Products has been delivering and exceeding the needs of industry. Ask us about your requirements.

Technical Specifications
Code Model Pump Displacement (CFM) Free Air Delivery (LPM) Max PSI Engine Warranty
Pump		 Warranty
Engine		 Tank Capacity (L) Pump up
time to 100PSI		 Dimensions (mm)
Weight (kg)
00101 PHP15P 15 CFM 320 LPM 175 Honda
GX200		 5 Year 3 Years 68L 1.25 - 1.30 Min 1250Lx450Wx820H
105kg
00107 Twin Tank 15 CFM 320 LPM 175 Honda
GX200		 5 Year 3 Years 32L 0.45 - 0.50 Min. 1200Lx550Wx710H
80kg
00101-UO Under Over 15 CFM 320 LPM 175 Honda
GX200		 5 Year 3 Years 5L - 700Lx400Wx1000H
95kg
00101-2TT Tube Tank 15 CFM 320 LPM 175 Honda
GX200		 5 Year 3 Years 5L - 1100Lx400Wx550H
80kg
00101-UTE Ute Mate 15 CFM 320 LPM 175 Honda
GX200		 5 Years 3 Years 32L 0.55 - 1.00 Min. 570Lx1000Wx570H
116kg

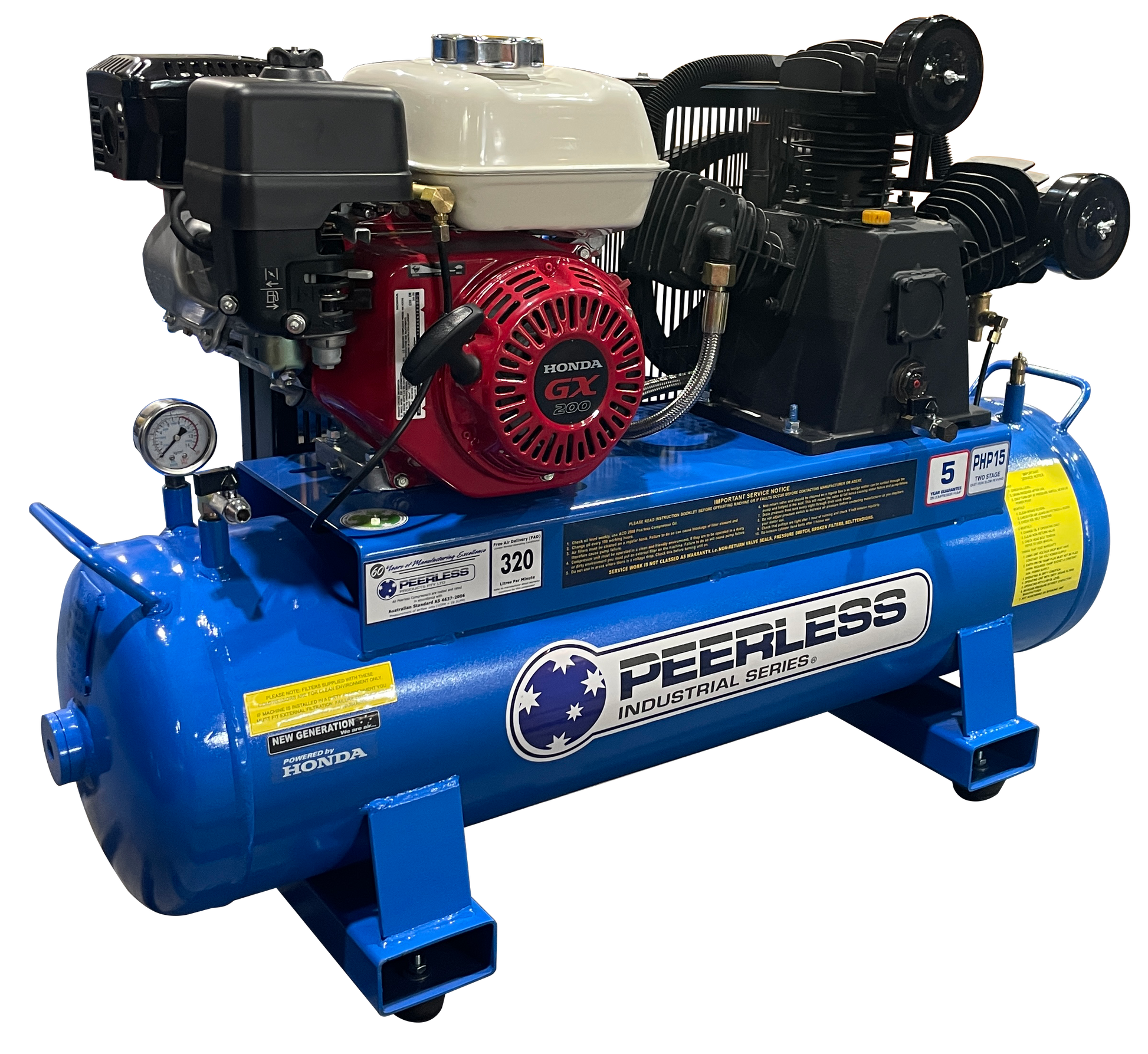

00101-SF Skid Foot 15 CFM 320 LPM 175 Honda
GX200		 5 Year 3 Years 68L 1.25 - 1.30 Min. LxWxH
kg
00101-FB Fat Boy 15 CFM 320 LPM 175 Honda
GX200		 5 Year 3 Years 110L 2.10 - 2.20 Min. LxWxH
kg

Technical Data

Cooling
method		 Pump type Cylinders Pump head
tension		 Pump Oil capacity Pump RPM Outlet thread Engine Fuel capacity Engine oil
capacity
Air cooled 2065T
2 Stage		 3 12 FT LB
16.27NM		 1.375L 1236 1/4"BSP 3.1L 600ml
10W/30
Spare parts
Peerless Spare Part

2065T Pump - for PHP15, PT35HP Air Compressor

$1,396.00
$1,396.00 Retail

Top End of Pump 2065T

Internal Components of Pump 2065T

External / Body Components of 2065T

Peerless Spare Part

00186 Complete Idler Control Kit: 1/2" - for P17P, P17D, PHP15P, PHP15D, PV25P, PV25D, PHP30P Air Compressor

$498.00
$498.00 Retail
Peerless PHP15 Truckies Series

PHP15 Petrol Air Compressor: Belt Drive, Honda GX200, 320LPM - for High Pressure

from $4,515.00
from $4,515.00 Retail
Portable
Twin Tank
Under & Over Design
2" Tube Tank
Ute Mate
Skid Foot Tank
Fatboy
Select options

Additional Components of PHP15 Petrol

Petrol air compressors

Honda world class engines are used on all Peerless petrol models. All petrol models come standard with American made idler control valves and piston for improved fuel economy and emissions.

All Honda Petrol Engines supplied on a Peerless Air Compressor are designed and approved for the Australian market, which means it can be serviced/warrantied throughout Australia with any of the approved Honda service agents.
