Peerless PHP15 Truckies Series

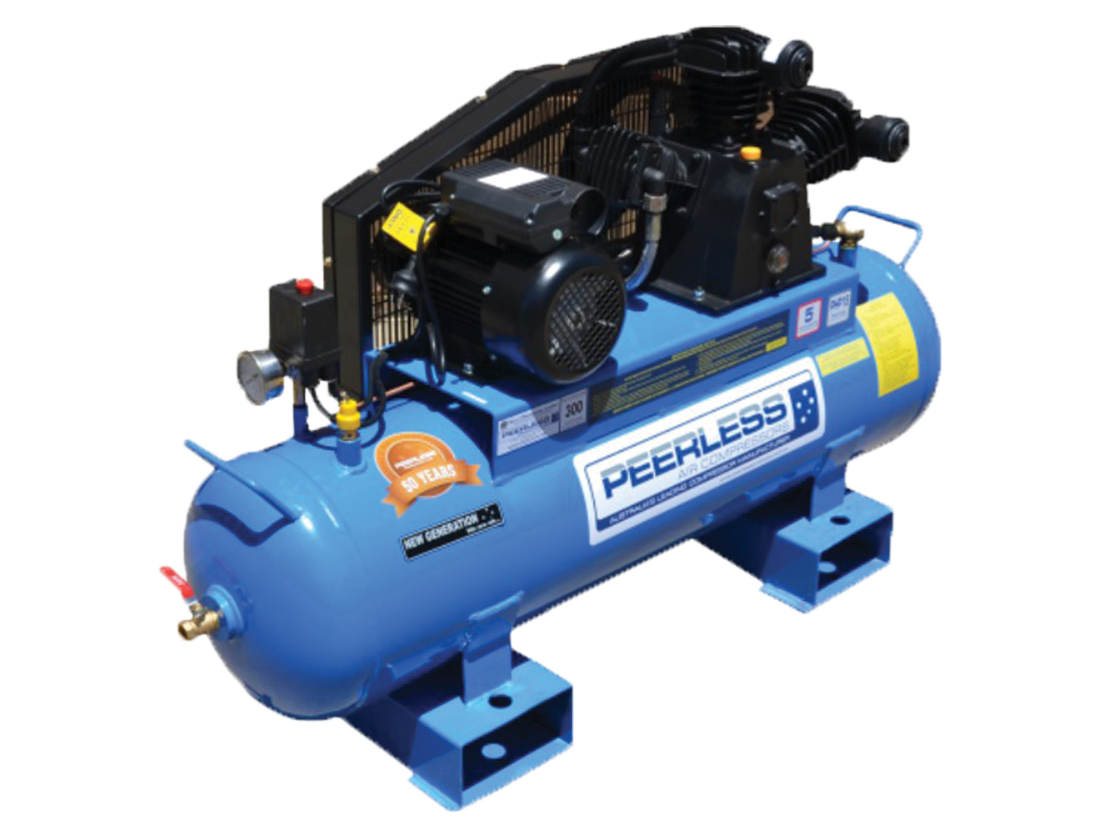

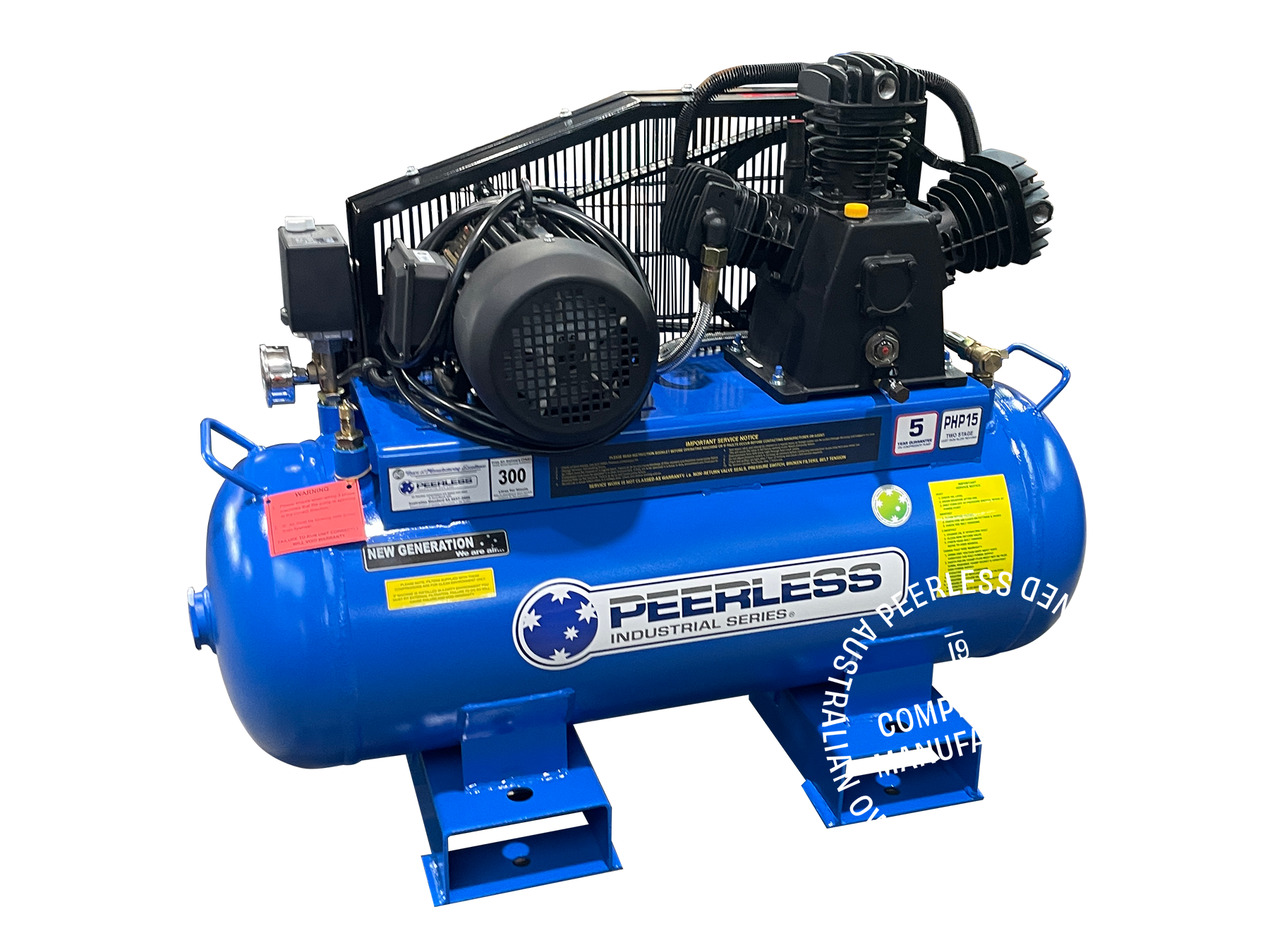

PHP15 Three Phase Air Compressor: Belt Drive, 4HP, 300LPM - for High Pressure

Truckie's mate: 300L/min free air at high pressure. Peerless cast iron pump, 5-year warranty. Impressive performance with reliability.
  • Availability:
    In Stock
  • SKU:
    00125 (PHP15)
Retail $4,340.00
Cost $4,340.00 Retail Retail
Discount 0
Tax included.

Power at a Glance

Free air delivery

Litres of air per minute

300LPM @ 100PSI


4HP 3 Phase

High Pressure

Pounds per square inch

Max 175 PSI

See all the specs

Truckie's mate - Unbeaten performance.


Power friendly.

Smart Start Filter - U.S.A made to reduce start up AMPs by up to 40%.


Truckies Mate.

High pressure operation for truck tyre inflation. 2 Stage compressor pump.


Seal of approval.

Australian GEMS approved three phase motor.

Product description

The PHP15 3 phase has been designed and manufactured to give you the opportunity of using three phase power. Therefore making it more economical to run and alleviates the chances of motor failure.

The PHP15 is a 3.5HP two stage high pressure compressor is capable of truck tyre inflation with ease. These machines are fantastic for applications where large volumes of air where high pressure is required.

Fitted with a high pressure water trap regulator, means you can set your air tool pressure to 90PSI without over pressuring and damaging your tools. Main tank outlet also on this model means you can use mains pressure for higher pressure applications like truck tyre inflation. Built to last with solid puncture proof wheels, solid metal belt guard, adjustable handle on the portable unit makes it for easy storage for tight spots. Smart start intake filters fitted (USA Made) assists in reducing AMP's draw for single phase power. These filters will suck in the air when the pump is at or close to full RPM, reducing electrical load onto the motor. This is critical feature for voltage fluctuations we face here in Australia.

Having one of the largest warranties on the market, 5 Year Pump and 1 Year Motor Warranty this puts your mind at rest when investing in a quality product.

We set the manufacturing operating pressure of this unit with a 120PSI cut-in to a 140PSI cut-out.

The 2065T Pump is capable of a maximum pressure of 175PSI. When adjusting any settings outside the manufacturing standards set by Peerless Products you must consult a Peerless Products technician on 03 5434 4200.

The advantages of a two stage compressor is that you do not lose volume of air at higher pressure. The air temperature is some 40% cooler than the standard type of air compressor therefore producing less condensation. These models come with all the standard features as the P17 and P14.

Performance of all our belt driven air compressors are to AS4637.

For over 60 years Peerless Products has been delivering and exceeding the needs of industry. Ask us about your requirements.

Technical Specifications
Code Model Pump Displacement (CFM) Free Air Delivery (LPM) Max PSI Motor HP Warranty
Tank Capacity (L) Pump up
time to 100PSI
Dimensions (mm)
Weight (kg)
00125 PHP15 15 CFM 300 LPM 175 4 5 Years 1 Year 110L 2.30 - 2.35 Min 1090Lx450Wx890H

Technical Data

Pump type Cylinders Pump head
Oil capacity Pump RPM Outlet thread Electricity Amps draw
Air cooled 2065T 2 Stage 3 12 FT LB
1.375L 1132 1/4" BSP & 1/2" BSP 415V 5.1
Spare parts
Retail $1,396.00
Cost $1,396.00 Retail Retail

Top End of Pump 2065T

Internal Components of Pump 2065T

External / Body Components of 2065T

Retail $857.00
Cost $857.00 Retail Retail

Retail $4,340.00
Cost $4,340.00 Retail Retail

Truckie's mate: 300L/min free air at high pressure. Peerless cast iron pump, 5-year warranty. Impressive performance with reliability.

Additional Components of PHP15 Three Phase
