Peerless PHP30 Industrial

PHP30 Three Phase Air Compressor: Belt Drive, 5.5HP, 620LPM - for High Pressure

Maximum air performance: 620L/min, slow revving cast iron pump. Truckie's mate with the high pressure pump.
  • Availability:
    In Stock
  • SKU:
    00070 (PHP30)
Retail $6,885.00
Cost $6,885.00 Retail Retail
Discount 0
Tax included.

Power at a Glance

Free air delivery

Litres per minute of air

620LPM @ 100PSI


5.5HP 3 Phase

High Pressure

Pounds per square inch

Max 175 PSI

See all the specs

Built for trade, Bendigo Victoria built.


Truckies Mate.

High pressure operation for truck tyre inflation. 2 Stage compressor pump.


Seal of approval.

Australian GEMS approved three phase motor.



Warranty - 1 year pump and motor warranty - Industrial warranty not domestic

Product description

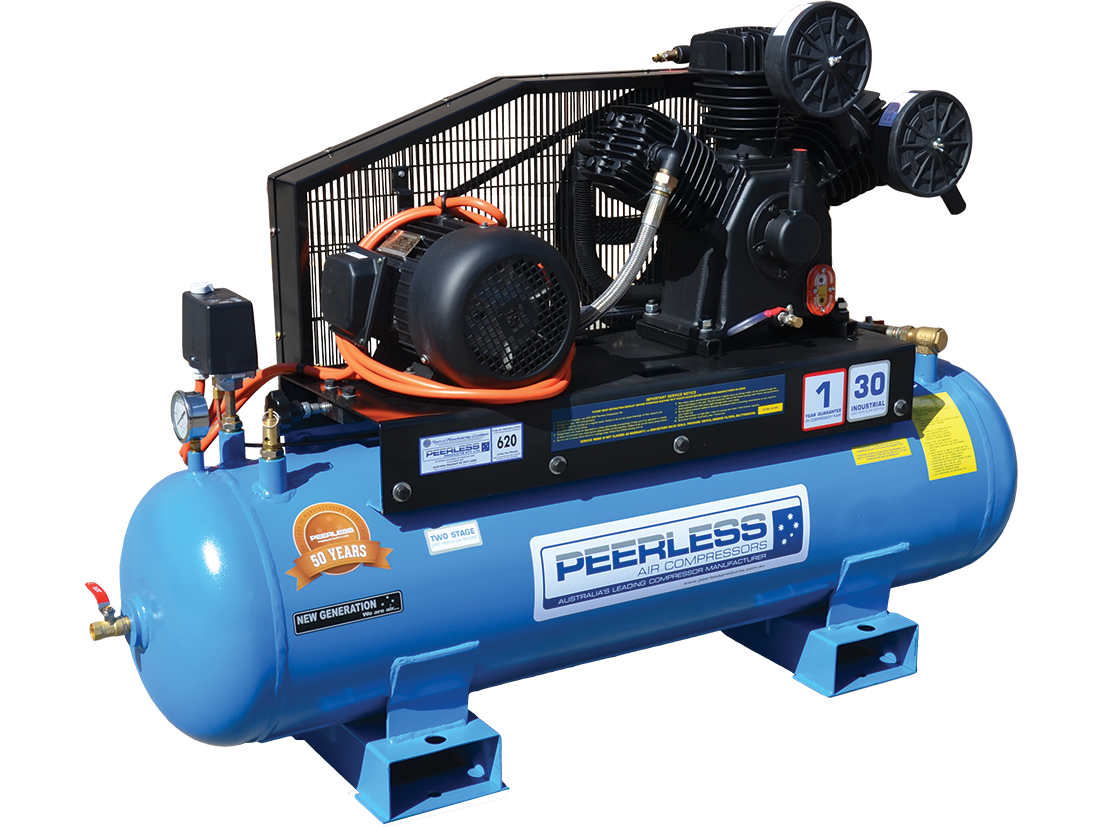

The PHP30 industrial three phase model is a three cylinder slow revving two stage air compressor. It has a 5.5HP three phase electric motor, comes complete with a 150 litre air receiver and is the ideal workshop compressor. 3-4 person workshop this would be best suited for. Solid belt guard and braided exhaust hose, huge oil sight glass fitted with a ball valve for ease of draining your compressor oil when servicing. Condor pressure switch fitted along with a beautiful oil filled stainless steel pressure gauge.

The pump is like the V90 but with a high pressure cylinder, which doesn't have an air intake filter, making it high pressure. Two 90mm pistons feeding the air flow through to the 80mm piston. Adjusting the pressure (PSI) means it will be able to do so without losing the volume of air being supplied.

Set in the factory at 120-140PSI cut out making it an ease for truck tyre inflation or if you just need that extra burst of high pressure air.

Helpful tip:

When mounting, be sure to get "high density" rubber matting and then fix to a secure footing as per your states regulations. Remember, when installing allow enough space for the air compressor to breath, air flow is forced over the pump to keep it cool. If mounted hard up against a wall or boxed, it will have trouble getting the correct air circulation.

All pressure vessels can be supplied with a "Manufacturing Data Report" along with "Registered Design" for Work Safe registration.
Peerless Products pressure vessels are all made to AS1210.

Performance of all our belt driven air compressors are to AS4637.

For over 60 years Peerless Products has been delivering and exceeding the needs of industry. Ask us about your requirements.

Technical Specifications
Code Model Pump Displacement (CFM) Free Air Delivery (LPM) Max PSI Motor HP Warranty
Tank Capacity (L) Pump up
time to 100PSI
Dimensions (mm)
Weight (kg)
00070 PHP30 30 CFM 620 LPM 175 5.5 1 Year 1 Year 150L 1.35 - 1.40 Min 1500Lx440Wx1020H
00109 PHP30V 30 CFM 620 LPM 175 5.5 1 Year 1 Year 190L 2.20 - 2.25 Min 920Lx560Wx1680H

Technical Data

Pump type Cylinders Pump head
Oil capacity Pump RPM Outlet thread Electricity Amps draw
Air cooled W90II 2 Stage 3 30 FT LB
1.5L 1075 1/4" BSP & 1/2" BSP 415V 7.4
Spare parts
Retail $1,682.00
Cost $1,682.00 Retail Retail

Top End of Pump W90II

Internal Components of Pump W90II

External / Body Components of Pump W90II

Retail $1,225.00
Cost $1,225.00 Retail Retail

Retail from $6,885.00
Cost from $6,885.00 Retail Retail

Maximum air performance: 620L/min, slow revving cast iron pump. Truckie's mate with the high pressure pump.

Additional Components of PHP30 Three Phase
