Peerless PHP35

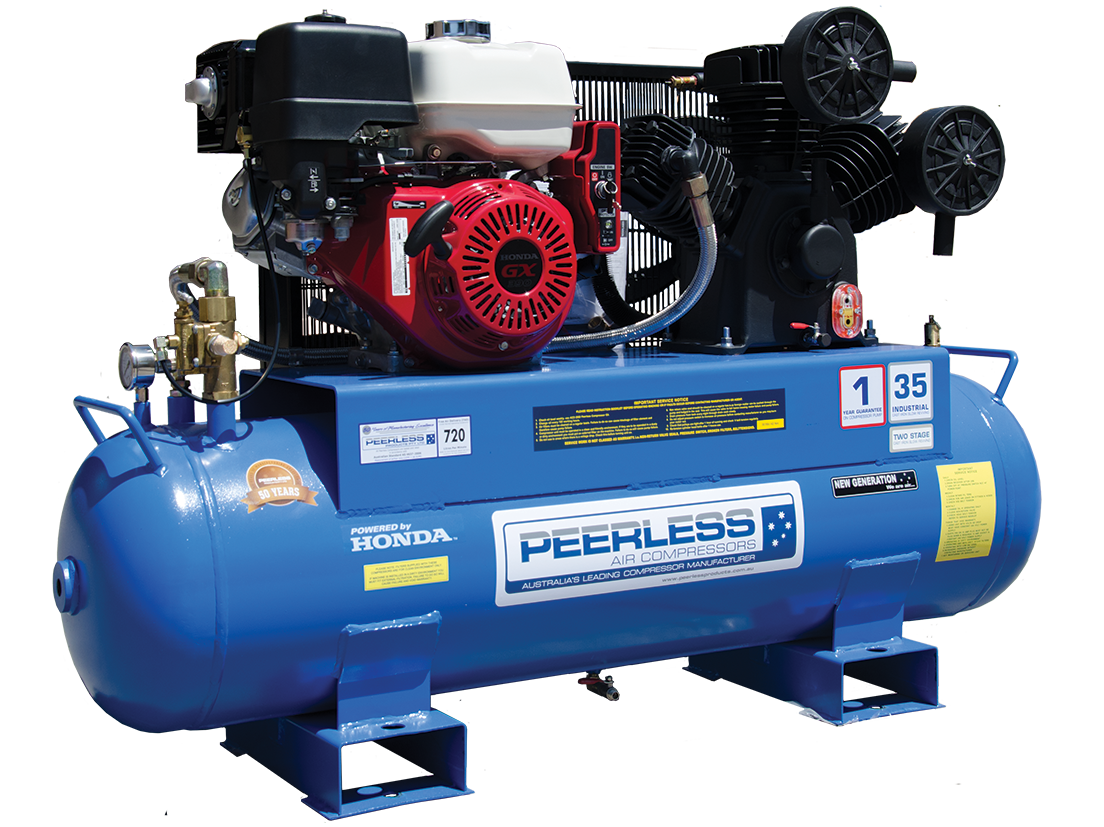

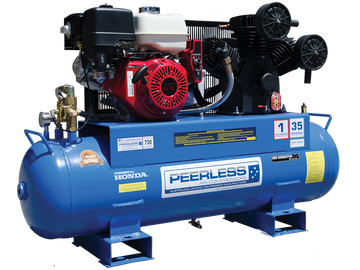

PHP35 Petrol Air Compressor: Belt Drive, Honda GX390, 720LPM - for High Pressure

  • Availability:
    In Stock
  • SKU:
    00095 (PHP35P)
Retail Authorised Peerless dealer? Login to see prices
Dealer price Authorised Peerless dealer? Login to see prices Retail Authorised Peerless dealer? Login to see prices Retail
Discount 0
Tax included.

Power at a Glance

Engine GX390

Key start as standard

GX390 Honda Petrol

Free air delivery

Litres per minute of air

720LPM @ 100PSI

High Pressure

Pounds per square inch

Max 175 PSI

See all the specs

Built tough for Australian conditions.

icon

Conrader Idler Valve.

USA made air operated idler valve. Save fuel and money.

icon

Manufactured in Australia.

Built and assembled in Bendigo, Victoria for over 60 years.

icon

Honda Guarantee.

Genuine Honda engine. 3 Year warranty backed nationwide.

Product description

This Stationary High Pressure Honda Petrol unit is ideally suited where high volumes of air are required. e.g. post hole driving, full tyre inflation for trucks and tractor or for multiple outlets. Electric start standard. Please call Peerless for a quote.


Electric start engine does not come with battery, leads or provisions for battery.
We can manufacture to your design plus there are other standard designs for each model.

Technical Specifications
Code Model Pump Displacement (CFM) Free Air Delivery (LPM) Max PSI Engine Warranty
Pump
Warranty
Engine
Tank Capacity (L) Pump up
time to 100PSI
Dimensions (mm)
Weight (kg)
00095 PHP35P 35 CFM 720 LPM 175 Honda
GX390
Key start
1 Year 3 Years 150L 1.35 - 1.40 Min 1490Lx485Wx965H
197kg
00095-UO Under Over 35 CFM 720 LPM 175 Honda
GX390
Key start
1 Year 3 Years 21L - 950Lx450Wx1030H
195kg

Technical Data

Cooling
method
Pump type Cylinders Pump head
tension
Pump Oil capacity Pump RPM Outlet thread Engine Fuel capacity Engine oil
capacity
Air cooled W90II
Triple head
3 30 FT LB
40.67NM
1.5L 790 1/2"BSP 6.1L 1.1L
10W/30
Spare parts
Retail Authorised Peerless dealer? Login to see prices
Dealer price Authorised Peerless dealer? Login to see prices Retail Authorised Peerless dealer? Login to see prices Retail

Retail Authorised Peerless dealer? Login to see prices
Dealer price Authorised Peerless dealer? Login to see prices Retail Authorised Peerless dealer? Login to see prices Retail

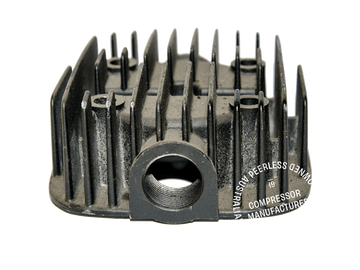

Top End of Pump W90II

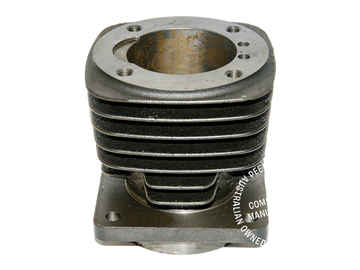

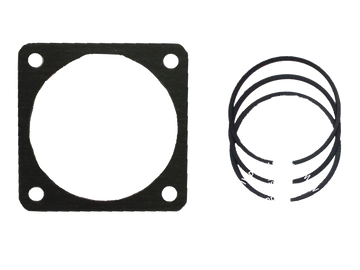

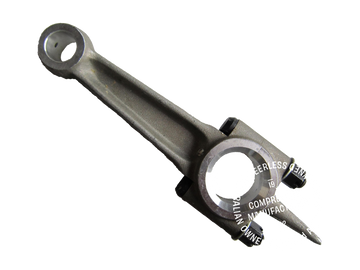

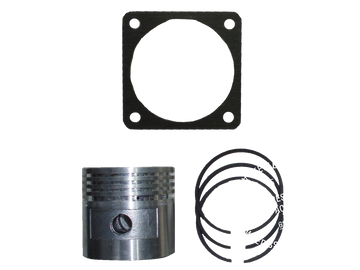

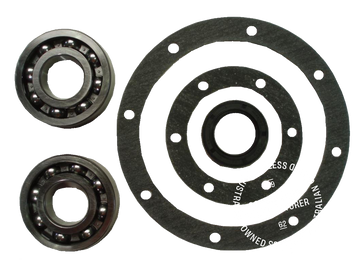

Internal Components of Pump W90II

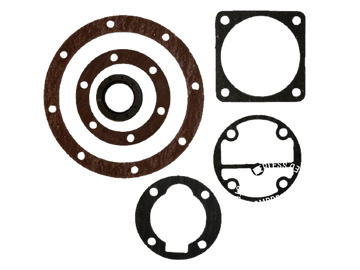

External / Body Components of Pump W90II


Retail Authorised Peerless dealer? Login to see prices
Dealer price Authorised Peerless dealer? Login to see prices Retail Authorised Peerless dealer? Login to see prices Retail
Fatboy
Under & Over Design

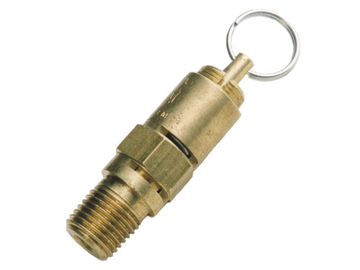

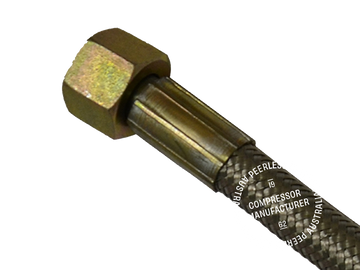

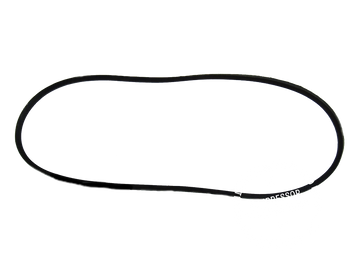

Additional Components of PHP35P Petrol


Petrol air compressors

Honda world class engines are used on all Peerless petrol models. All petrol models come standard with American made idler control valves and piston for improved fuel economy and emissions.

All Honda Petrol Engines supplied on a Peerless Air Compressor are designed and approved for the Australian market, which means it can be serviced/warrantied throughout Australia with any of the approved Honda service agents.
