Peerless PT35

PT35 Single Phase Air Compressor: Belt Drive, 15Amp, 7HP, 600LPM - for High Pressure

  • Availability:
    In Stock
  • SKU:
    00093-1 (PT35HP)
Retail $6,765.00
Cost $6,765.00 Retail Retail
Discount 0
Tax included.

Power at a Glance

Free air delivery

Litres per minute of air

600LPM @ 150PSI

High Pressure

Pounds per square inch

Max 175 PSI


Electric 3.5HP

See all the specs
PT35 Single Phase Air Compressor: Belt Drive, 15Amp, 7HP, 600LPM - for High Pressure

Truckies Mate.

High pressure operation for truck tyre inflation. 2 Stage compressor pump.



Warranty - 1 year pump and motor warranty - Industrial warranty not domestic


Power friendly.

Smart Start Filter - U.S.A made to reduce start up AMPs by up to 40%.

Product description

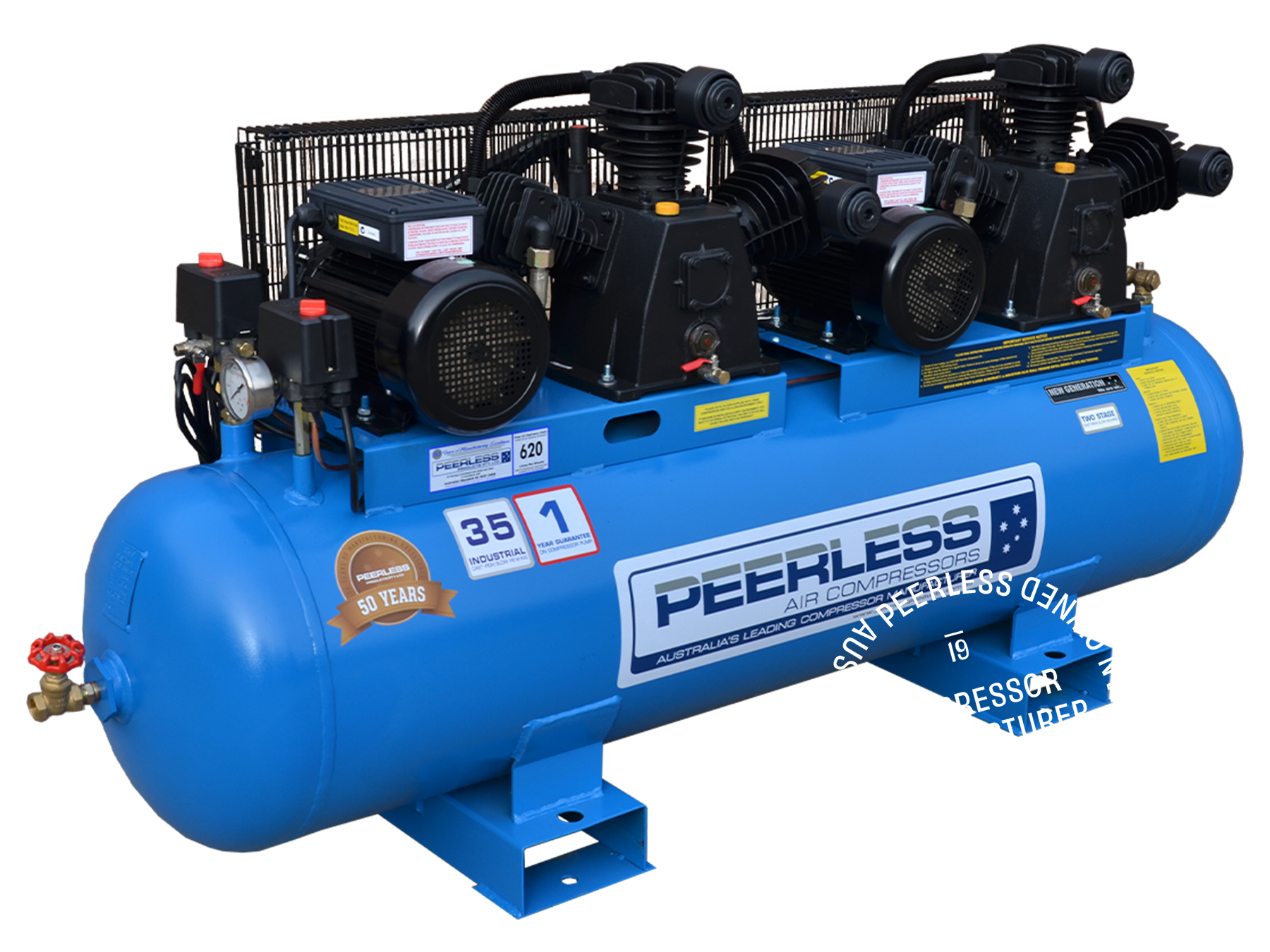

If you only have single phase power and require a large volume of air, this could be the solution for you. The Peerless PT35HP high pressure model is designed using two 2065T pumps and 3.5 HP motors. All fitted on a 190 litre air receiver.

The pumps are designed to restart 5 PSI apart and require two 15 Amp dedicated power plugs (draws 2 x 15 Amp) back to your fuse box to operate this machine. It is very important to ensure that this machine is wired correctly as failure to do so will cause motor failure.

Unlike its counterparts (PT30 & PT35 models) this is a high pressure air compressor being able to deliver volume of air at higher pressures. Well suited for truck tyre inflation.

The benefit of this air compressor is that its producing a massive 600 litres of free air per minute. But, if you are only cycling 1 motor and pump (continuous running and not stopping) without the secondary kicking in, you're wearing and over running the primary.
This is where you could use a single phase screw compressor to achieve a greater result.
When looking into this particular model, its always best to discuss with Peerless directly as we want to make sure the unit is a best fit for your applications.

On going servicing, alternating primary to secondary and secondary to primary is required to get equal wear.

Technical Specifications
Code Model Pump Displacement (CFM) Free Air Delivery (LPM) Max PSI Motor HP Warranty
Tank Capacity (L) Pump up
time to 100PSI
Dimensions (mm)
Weight (kg)
00093-1 PT35HP 33 CFM 600 LPM 175 3.5 1 Years 1 Year 150L 1.50 - 1.55 Min 1770Lx400Wx880H

Technical Data

Pump type Cylinders Pump head
Oil capacity Pump RPM Outlet thread Electricity Amps draw
Air cooled 2065T 3 12 FT LB
1375mL 1132 1/4" BSP 240V / 15A (2) 13
Spare parts
Retail $1,396.00
Cost $1,396.00 Retail Retail

Top End of Pump 2065T

Internal Components of Pump 2065T

External / Body Components of 2065T

Retail $996.00
Cost $996.00 Retail Retail

Components of 3.5HP Single Phase Motor

Retail $6,765.00
Cost $6,765.00 Retail Retail

Additional Components of PT35HP
