N75 Pump: N75 - for P14, P17, P20, PT30, PT35 Air Compressor

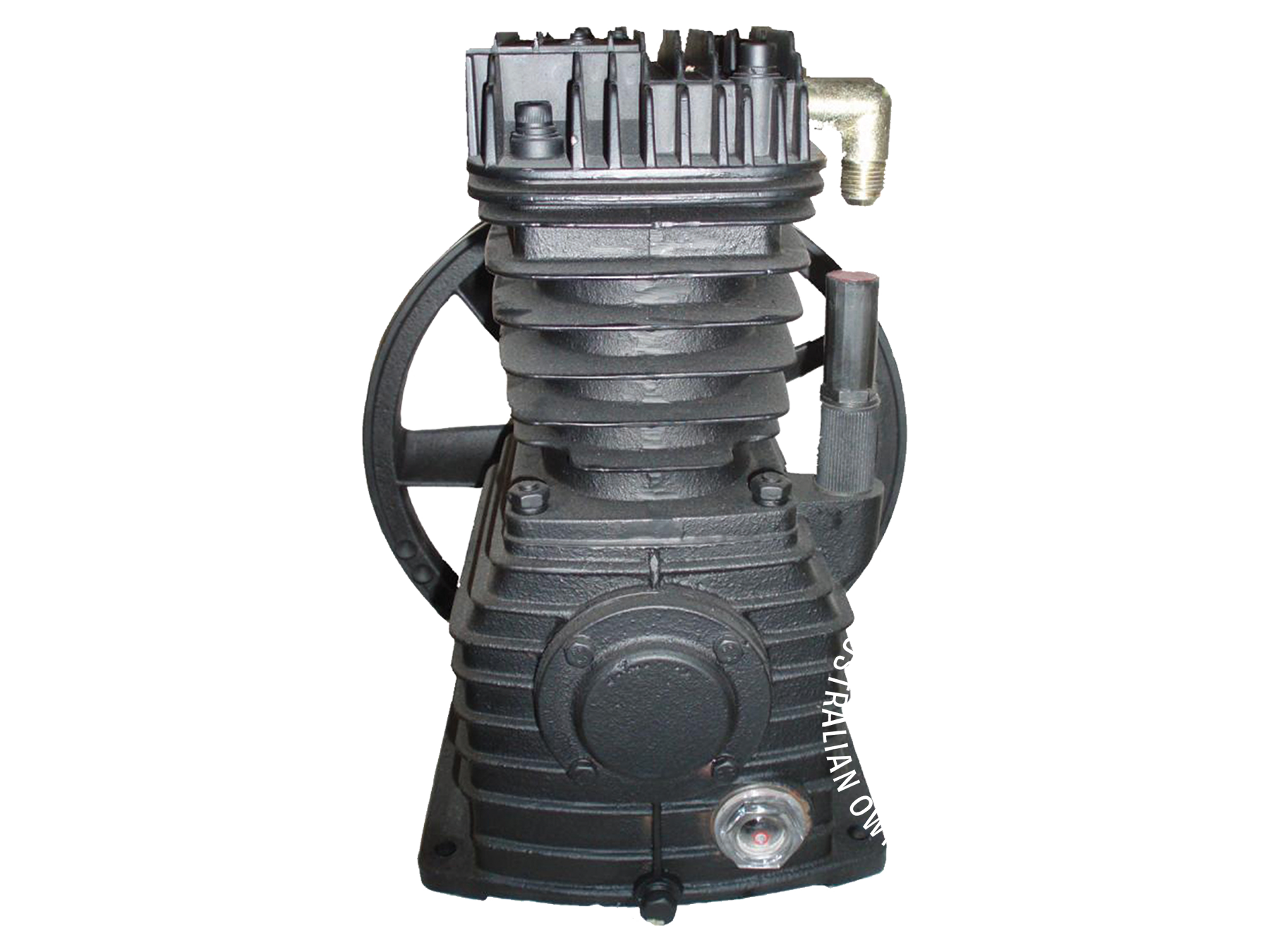

N75 Pump: Twin Cylinder Inline – Technical Overview

The N75 Twin Cylinder Inline Pump is built for high performance and durability. Supplied pre-filled with oil, air filters, and pulley, it’s ready to install straight out of the box. Each unit is thoroughly tested at the factory to ensure consistent quality and reliability.

The N75 pump is commonly fitted to the following Peerless air compressor models:

P14 – 10A Single Phase

P17 – 15A Single Phase / Petrol / Diesel

P20 – 15A Single Phase

PT30 - 2x 10A Single Phase (Twin Pump & Motor Systems)

PT35 – 2x 15A Single Phase (Twin Pump & Motor Systems)

Key Features & Construction

Full Cast Iron Barrel & Sump: Ensures strength and wear resistance

Aluminum Cylinder Head: Enhances heat dissipation to maintain cooler operating temperatures

Stainless Steel Reed Valves: Designed for extended life and dependable sealing

Oversized 12” Flywheel: Increases airflow over the pump for superior cooling, outperforming standard designs

Inline Twin Cylinder Configuration:

Offers a balanced stroke cycle—one piston up as the other is down

Results in reduced vibration and noise

Minimizes amp draw and motor wear, extending equipment life

Smart Start Filters

Fitted with “Smart Start” intake filters to reduce starting amp draw by up to 40%—a major benefit in low-voltage environments and for protecting electric motors.

Serviceability

We stock a full range of genuine spare parts, giving you long-term peace of mind and easy servicing throughout the pump’s life.

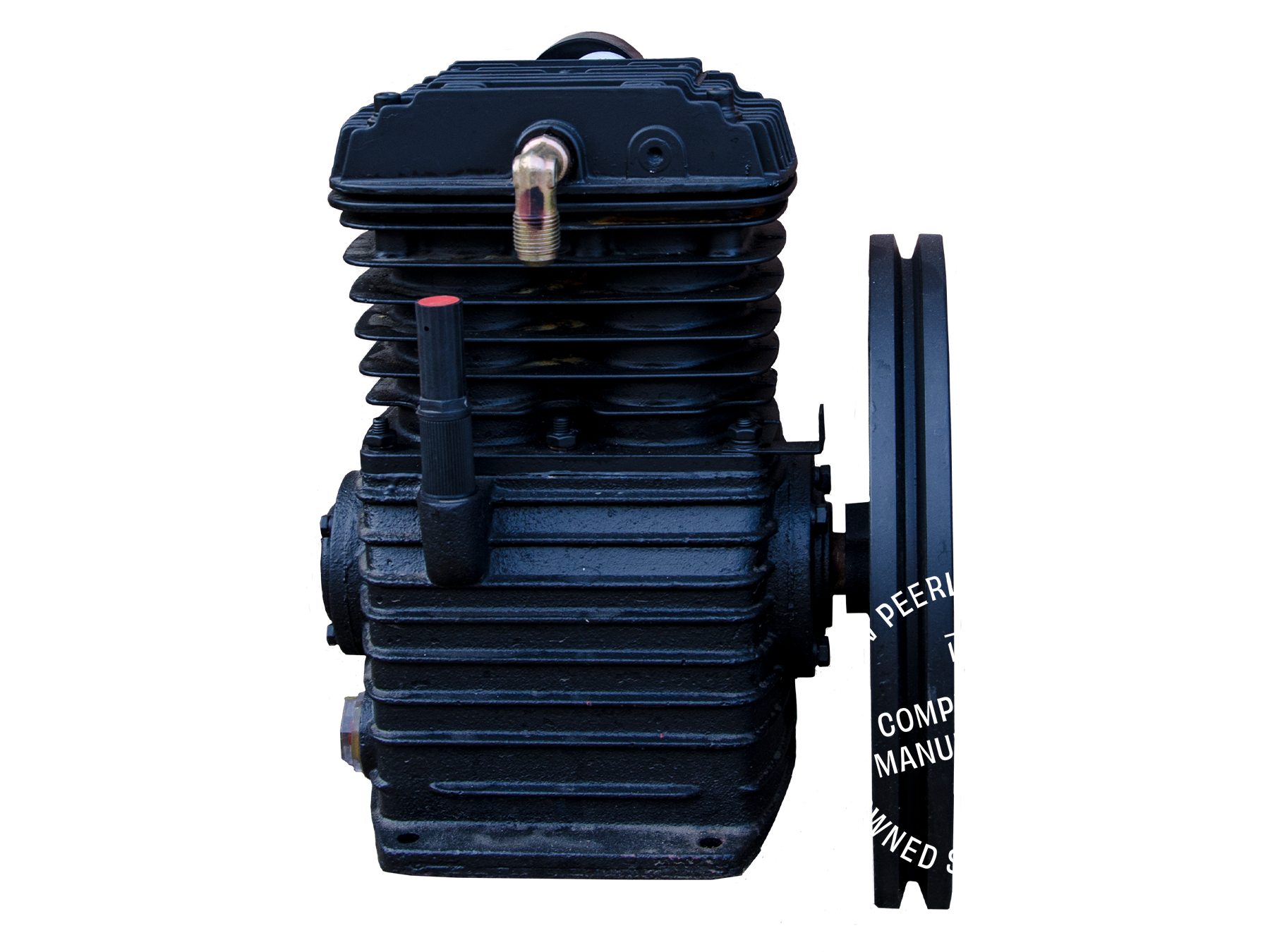

How to Identify an N75 Pump

• Brass exhaust outlet located on the side of the cylinder head
• Eight head bolts, including two positioned under the cylinder head plate

If unsure on how to identify, please contact Peerless Products on 03 5434 4200
