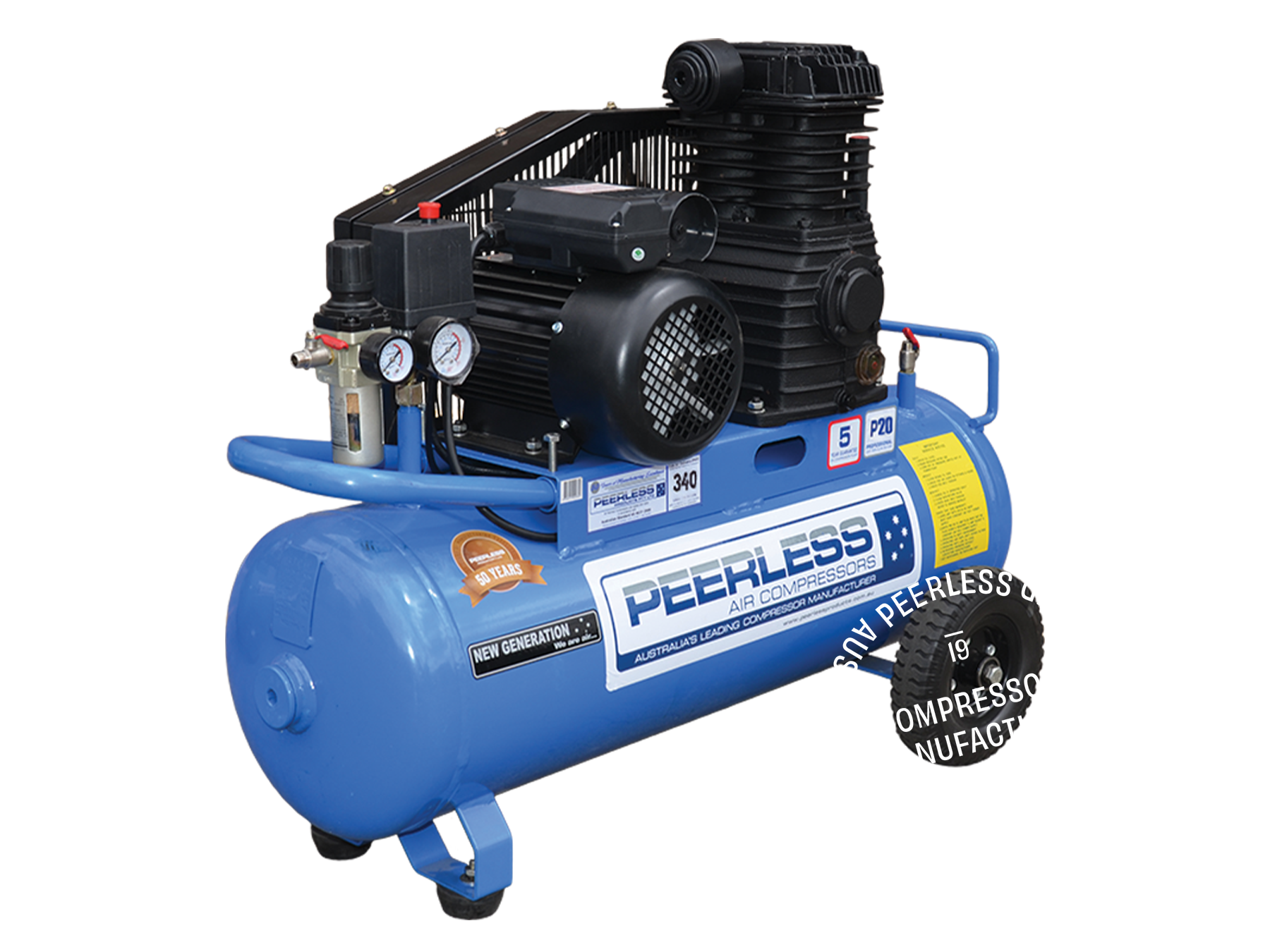

Peerless P20

P20 High Flow Single Phase Air Compressor: Belt Drive, 15Amp, 3.5HP, 340LPM

Ultimate performance: 340L/min free air. Dual outlets: water trap filter regulator, direct tank pressure. Peerless cast iron pump, 5-year warranty. Impressive performance with reliability.
  • Availability:
    In Stock
  • SKU:
    00007 (P20HF)
Retail $2,510.00
Cost $2,510.00 Retail Retail
Discount 0
Tax included.

Power at a Glance

Free air delivery

Litres per minute of air

340LPM @ 100PSI

Motor

Electric 3.5HP

Pressure

Pounds per square inch

Max 145 PSI

Power supply

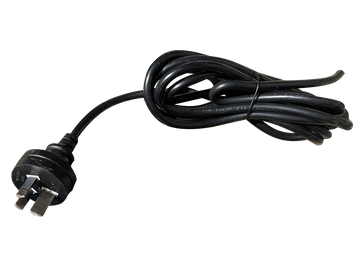

15 Amp Plug

Warranty

Pump / Motor / Tank

5 Years / 1 Year / 10 Years

See all the specs
P20 High Flow Single Phase Air Compressor: Belt Drive, 15Amp, 3.5HP, 340LPM

Impressive performance with reliability.

icon

Power friendly.

Smart Start Filter - U.S.A made to reduce start up AMPs by up to 40%.

icon

Power on the go.

Take your compressor wherever you go with its easy and flexible design.

icon

Warranty.

Warranty - 5 year pump, 1 year motor. A quality compressor that stays protected for years to come.

Product description

The P20 High Flow puts out 20 more litres per minute than the P17 model. This doesn't sound like a lot but when it comes to running air tools it make a big difference.

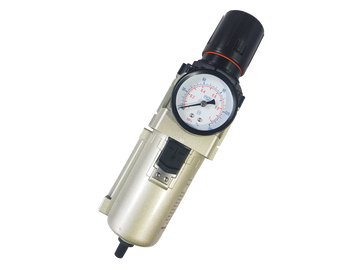

Comes with 2 outlets, one out from the water trap regulator and one directly out from the tank for full tank pressure. Built to last with solid puncture proof wheels. Having one of the largest warranties on the market, 5 Year Pump and 1 Year Motor Warranty this puts your mind at rest when investing in a quality product.

Being the biggest single phase compressor on one power line, it is important to make sure you have the correct power, otherwise it will cause motor failure.

Able to run;
Low & high pressure spray guns
Car tyre inflation gun
Stapling / fitting gun
Framing nail / Grease gun
Chalking gun / Riveter gun
Pneumatic Screw driver
1/2” Ratchet gun
1/2” Impact gun
Air duster
4” Angle grinder
6” Orbital sander
Air drill
Engine cleaning gun
Sand blasting gun
Air hammer
Hi torque 1/2” Impact gun
1/4” Die grinder

Performance of all our belt driven air compressors are to AS4637.

For over 60 years Peerless Products has been delivering and exceeding the needs of industry. Ask us about your requirements.

Technical Specifications
Code Model Pump Displacement (CFM) Free Air Delivery (LPM) Max PSI Motor HP Warranty
Pump
Warranty
Motor
Tank Capacity (L) Pump up
time to 100PSI
Dimensions (mm)
Weight (kg)
00007 P20HF 20 CFM 340 LPM 145 3.5 5 Years 1 Year 55L 1.00 - 1.05 Min 1050Lx430Wx770H
85kg

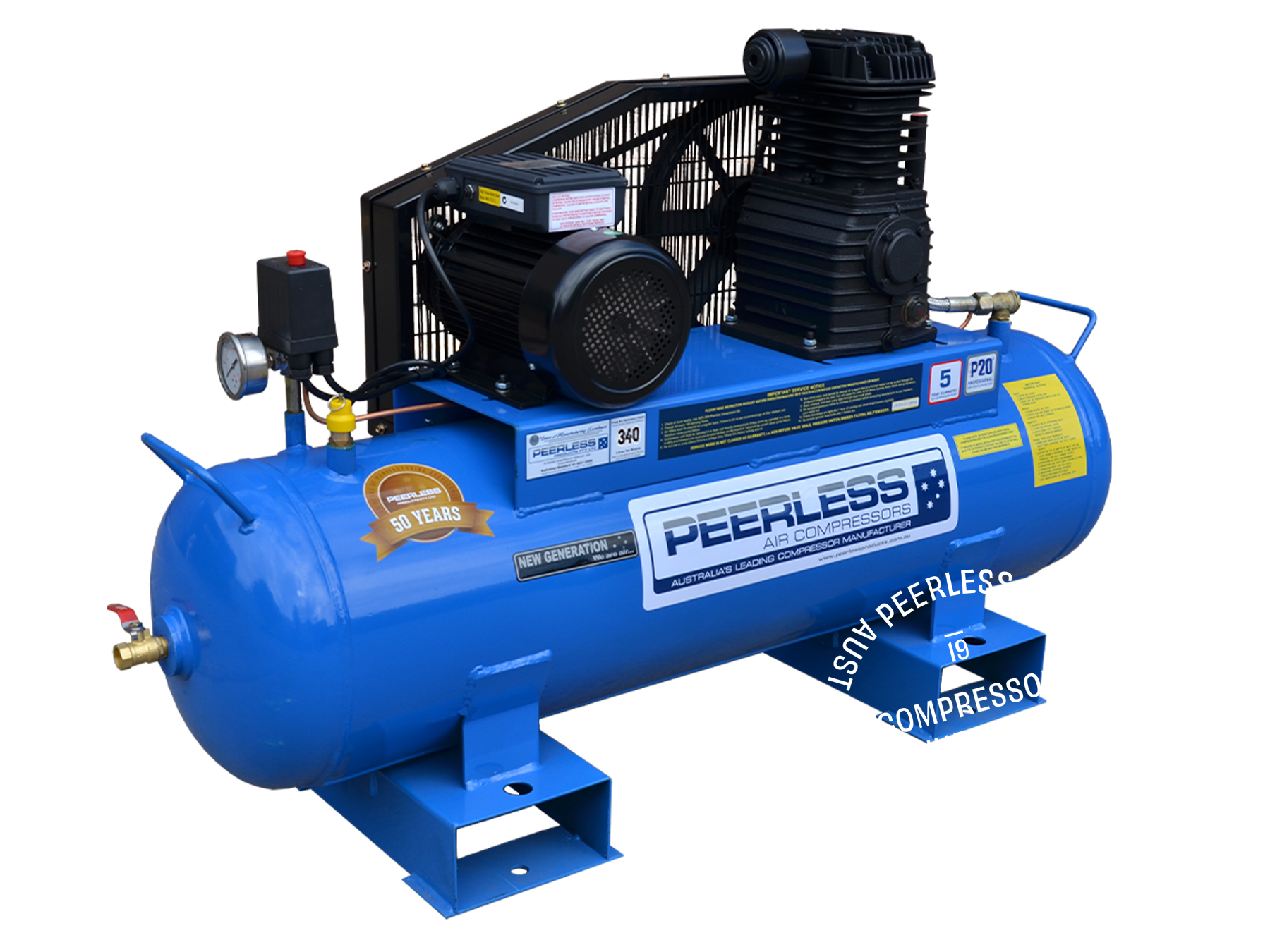

00008 P20HFFB 20 CFM 320 LPM 145 3.5 5 Years 1 Year 110L 1.55 - 2.00 Min 1090Lx450Wx880H
110kg

Technical Data

Cooling
method
Pump type Cylinders Pump head
tension
Oil capacity Pump RPM Outlet thread Electricity Amps draw
Air cooled N75 2 16 FT LB
22.4NM
1L 1050 1/4"BSP & 1/2"BSP 240V / 15A 13.3
Spare parts
Retail $135.00
Cost $135.00 Retail Retail

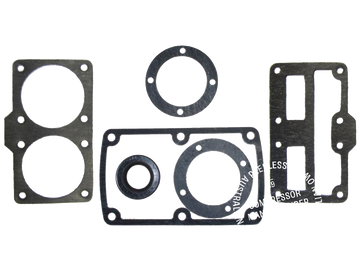

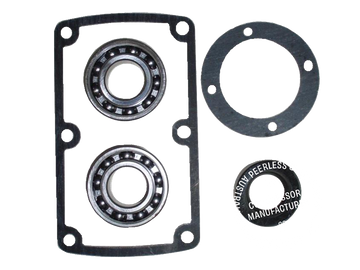

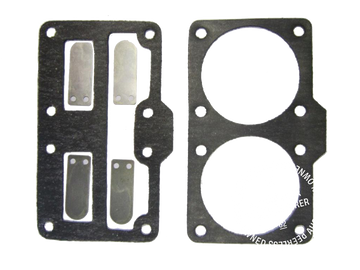

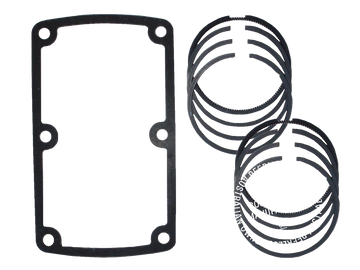

Compressor service kit to suit P14 / P17 / P20HF.

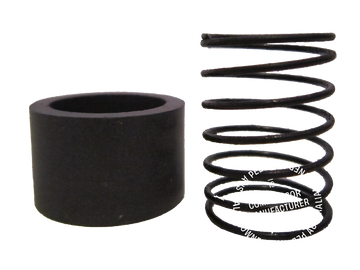

Individual Items for N75, C5 Service Kit


Retail $1,355.00
Cost $1,355.00 Retail Retail

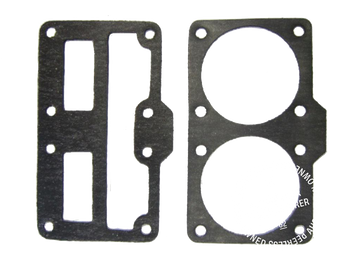

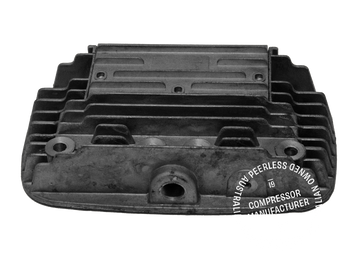

Top End of Pump N75

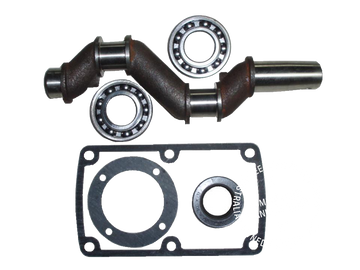

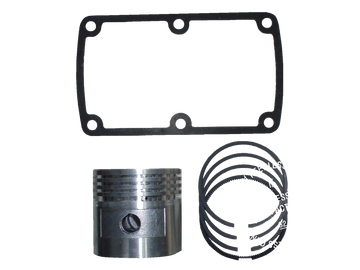

Internal Components of Pump N75

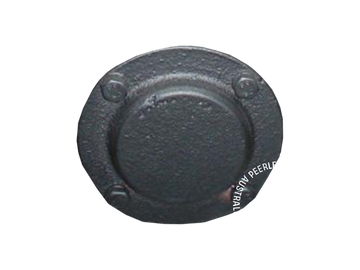

External / Body Components of Pump N75


Retail $996.00
Cost $996.00 Retail Retail

Components of 3.5HP Single Phase Motor


Retail from $2,510.00
Cost from $2,510.00 Retail Retail
Portable
Fatboy

Ultimate performance: 340L/min free air. Dual outlets: water trap filter regulator, direct tank pressure. Peerless cast iron pump, 5-year warranty. Impressive performance with reliability.

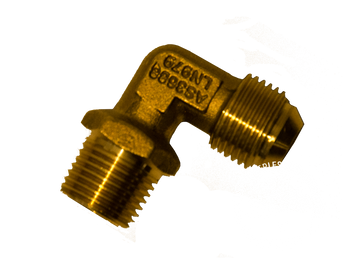

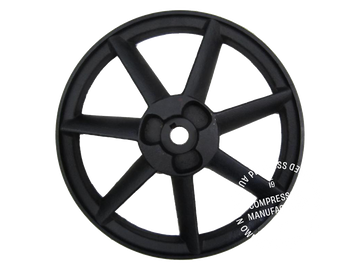

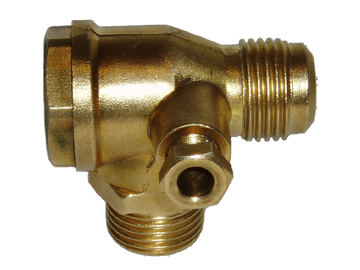

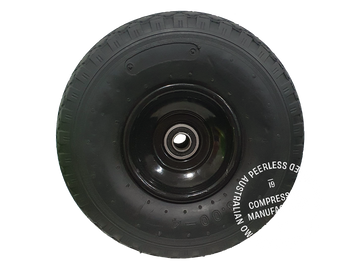

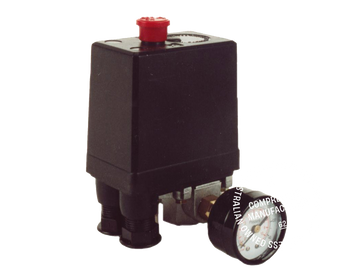

Additional Components of P20HF


Single phase air compressors

All Peerless single phase compressors are designed for efficiency and are suitable for full industrial use. Each compressor also features a smart start filter, reducing startup amps by 30-40%, making them ideal choices for use in low voltage areas.


See the range
